Product Details
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 630/6+12
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: Container loading with safety packing
Delivery Time: 90 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: |
Customized |
Warranty:: |
12 Months |
PLC: |
Optional |
Usage: |
Stranding |
Warranty: |
1 Year |
Capacity: |
100-150kg/h |
Application: |
Metal Wire,Al Wire,Steel Wire Rope,stranding Wire And Cable |
Name: |
Planetary Stranding Machine |
Voltage: |
380voltage Or Others |
Wire Material: |
Steel Wire |
Function: |
Control Cable |
Stranding Pitch: |
Step-less |
Taping Head: |
500 |
Plc: |
Siemens |
Optional: |
Magnetic Hysteresis |
Stranding Cage Motor Power(kw): |
45 |
Type: |
Automatic Machine |
Bearing: |
NSK/SKF |
Color: |
Customized |
Warranty:: |
12 Months |
PLC: |
Optional |
Usage: |
Stranding |
Warranty: |
1 Year |
Capacity: |
100-150kg/h |
Application: |
Metal Wire,Al Wire,Steel Wire Rope,stranding Wire And Cable |
Name: |
Planetary Stranding Machine |
Voltage: |
380voltage Or Others |
Wire Material: |
Steel Wire |
Function: |
Control Cable |
Stranding Pitch: |
Step-less |
Taping Head: |
500 |
Plc: |
Siemens |
Optional: |
Magnetic Hysteresis |
Stranding Cage Motor Power(kw): |
45 |
Type: |
Automatic Machine |
Bearing: |
NSK/SKF |

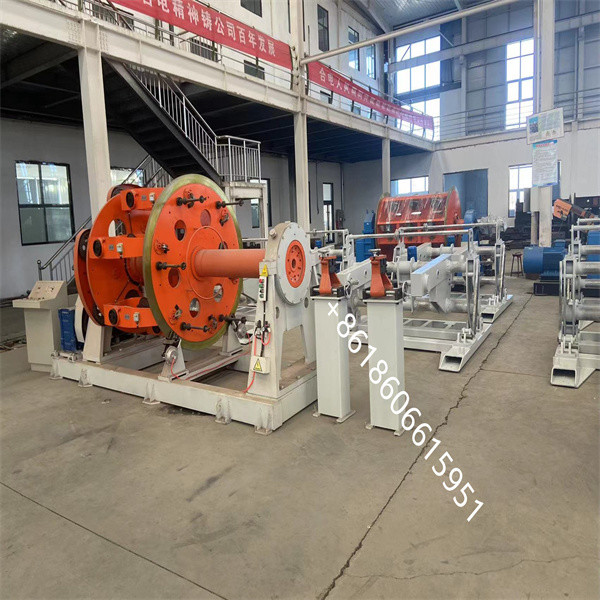

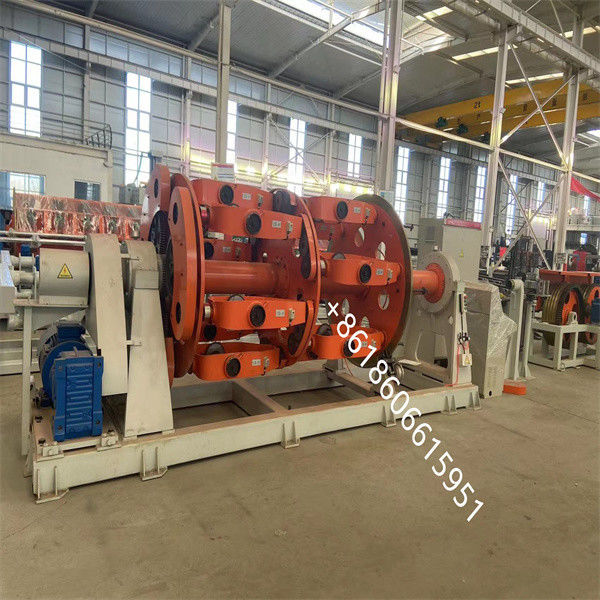

Planetary Strander Machines Manufacturers In China
1. Description
| Model | 500 | 630 | |
|
Diameter of single wire |
Copper | Φ1.5～Φ3.0 | Φ1.5～Φ5.0 |
| Aluminum | Φ1.8～Φ4.0 | Φ1.8～Φ5.0 | |
| Insulated cores | Φ3.0～Φ8.0 | Φ3.0～Φ10.0 | |
| Maximum stranded conductor OD | Φ45 | Φ50 | |
| Stranding lay length Step-less, adjustable | |||
|
Maximum rotating speed |
6B | 100 | 70 |
| 12B | 100 | 70 | |
| 18B | 70 | 62 | |
| 24B | 62 | 50 | |
|
Capstan |
(m/min) Maximum pulling speed |
51 | 42 |
| Payoff reel in cage | PN500/PND500 | PN500/PND500 | |
|
Center payoff reel |
PN800/PN1600 | PN800/PN1600 | |
| Take-up reel | PN1600/PN2500 | PN1600/PN2500 | |
| Central height | 1000 | 1000 | |
BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China.
BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products.
BEYDE was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With maturetechnological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines
