|Input Wire:||1-1.5mm||Material:||Cu,Al, St|
|Rotationg Speed:||100r/min||Bearing Form:||Big Bearing Support|
|Warranty:||2 Years||Max Stranding OD:||45MM|
|Transportation:||By Sea||Install Service:||Free|
100r/min cable strander,
planetary cable strander lay up machine,
high stranding speed planetary strander

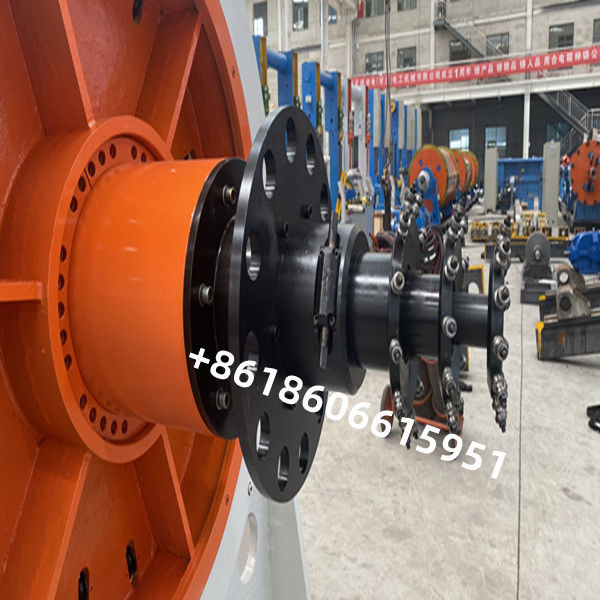

Professional Planetary Strander , High Stranding Speed Lay Up Machine
The planetary strander is used for aluminum copper wires, aluminum conductor steel reinforced, insulated wires, as well as optical fiber composite overhead ground wires abbreviated as OPGW
1 Back-twist and Non-back-twist can be switched.2. The planetary stranding machine can be used for synchronous multiple-core stranding
1. Numerous Sizes
Bobbin of this cable making equipment can be made with diameter ranging 250mm to 800mm. 6 to 48 pieces of bobbins are set for each single cage. The bobbins area ranged in 3,4. 5, or 6 equations.
2. Various Tension Modes
This planetary strander is available with a variety of tension modes, for instance, magnetic tension.
mechanical tension, mechanical with feedback tension, pneumatic tension, etc.
1. A timing belt back-twist system is developed, for which the whole wire stranding equipment is greatly decreased in noise generation. In addition, the cable won't be contaminated by the gear grease2. The advanced key groove machining tools are used for discs installation. They can guarantee that bobbin loader holes on two ends are concentric after assembly.3. We have increased the holes for measuring center height on disc. With those holes. the client can conveniently check the riding wheels at any time, and adjust the wheels for avoiding the axle fatigue fracture.
4. Cradle clamping device is optimized, which avoids using massive screws and guarantees no screw falling during running.
|Model (Planetary Stranding Machine)||JLY-315||JLY-400||JLY-500||JLY-630|
|Diameter of single wire||Copper||φ1-1.6 mm||φ1-4 mm||φ1.2-5 mm||φ1.5-5 mm|
|Aluminum||φ1.2-2 mm||φ1.2-4 mm||φ1.4-5 mm||φ2.0-5 mm|
|Maximum stranded conductor OD||φ14 mm||φ28 mm||φ35 mm||φ45 mm|
|Stranding Pitch||6 Bobbin Stranding Cage||26-435||39-695||44-770||48-840|
|12 Bobbin Stranding Cage||30-526||43-774||47-858||50-928|
|18 Bobbin Stranding Cage||34-639||47-858||55-1001||65-1201|
|24 Bobbin Stranding Cage||38-749||51-940||63-1151||75-1601|
|Rotating Speed||6 Bobbin Stranding Cage||218 r/min||120 r/min||106 r/min||55 r/min|
|12 Bobbin Stranding Cage||118 r/min||110 r/min||97.5 r/min||45 r/min|
|18 Bobbin Stranding Cage||108 r/min||100 r/min||82.9 r/min||35 r/min|
|24 Bobbin Stranding Cage||98 r/min||90 r/min||74 r/min||25 r/min|
|Capstan||Capstan Wheel Diameter||1000 mm||1600 mm||1800 mm||2000 mm|
|Maximum Haul-off Force||2T||5T||10T||15T|
|Motor Power||18.5 KW||22 KW||37 KW||55 KW|
|Bobbin Size||315 mm||400 mm||500 mm||630 mm|
|Center Payoff Bobbin||315 mm||1250 mm||1600 mm||1600 mm|
|Take-up Bobbin||1250 mm||2000 mm||2000 mm||2500 mm|
|Maximum Haul-off Linear Speed||25 m/min||30 m/min||34.7 m/min||20 m/min|
|Central Height||1000 mm||1000 mm||1000 mm|
Payment terms:Telegraphic Transfer. 30% deposit after PO confirmed, 70% Balance paid before delivery
Delivery:90 days after deposit
Package:covered with air bubble film, fixed by steel wire in container.
Warranty period:12 Months after B/L date. Any failure occurred within the period due to our responsibility, we’ll supply you the spare parts for free, and permanent technical support & consultation all lifelong for the machines
● Our engineer will go to customer site for debug and installation when the machine reaches his factory. Customer has to arrange engineer return ticket, food & hotel at destination, and pay 200usd per day to our engineer when the installation work get done.
● We provide lifetime technical support, and our engineer is available to visit customer’s site in certain time.
