Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 630 1+6

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, Western Union, T/T

Supply Ability: 200 set/year

Get Best Price
Product Details
Highlight:

1mm stranding equipment

,

cable manufacturing industry stranding equipment

,

cable manufacturing industry wire stranding machine

Input Wire:
1-1.5mm
Material:
Cu,Al, St
Rotationg Speed:
100r/min
Bearing Form:
Big Bearing Support
Warranty:
2 Years
Max Stranding OD:
45MM
Linear Speed:
40m/min
Quotation:
FOB,CIF
Transportation:
By Sea
Install Service:
Free
Input Wire:
1-1.5mm
Material:
Cu,Al, St
Rotationg Speed:
100r/min
Bearing Form:
Big Bearing Support
Warranty:
2 Years
Max Stranding OD:
45MM
Linear Speed:
40m/min
Quotation:
FOB,CIF
Transportation:
By Sea
Install Service:
Free
Product Description

New Product Wire Stranding Basket Type Stranding Machine Best Selling Cable Machine For Sale



Planetary Strander
Application
The planetary strander is used for aluminum copper wires, aluminum conductor steel reinforced, insulated wires, as well as optical fiber composite overhead ground wires abbreviated as OPGW
Features
1 Back-twist and Non-back-twist can be switched.2. The planetary stranding machine can be used for synchronous multiple-core stranding
Product Advantages
1. Numerous Sizes
Inquiry Form
Bobbin of this cable making equipment can be made with diameter ranging 250mm to 800mm. 6 to 48 pieces of bobbins are set for each single cage. The bobbins area ranged in 3,4. 5, or 6 equations.
2. Various Tension Modes
This planetary strander is available with a variety of tension modes, for instance, magnetic tension.
mechanical tension, mechanical with feedback tension, pneumatic tension, etc.
Improvement
1. A timing belt back-twist system is developed, for which the whole wire stranding equipment is greatly decreased in noise generation. In addition, the cable won't be contaminated by the gear grease2. The advanced key groove machining tools are used for discs installation. They can guarantee that bobbin loader holes on two ends are concentric after assembly.3. We have increased the holes for measuring center height on disc. With those holes. the client can conveniently check the riding wheels at any time, and adjust the wheels for avoiding the axle fatigue fracture.
4. Cradle clamping device is optimized, which avoids using massive screws and guarantees no screw falling during running.



Technical sheet:

Model (Planetary Stranding Machine) JLY-315 JLY-400 JLY-500 JLY-630
Diameter of single wire Copper φ1-1.6 mm φ1-4 mm φ1.2-5 mm φ1.5-5 mm
Aluminum φ1.2-2 mm φ1.2-4 mm φ1.4-5 mm φ2.0-5 mm
Maximum stranded conductor OD φ14 mm φ28 mm φ35 mm φ45 mm
Stranding Pitch 6 Bobbin Stranding Cage 26-435 39-695 44-770 48-840
12 Bobbin Stranding Cage 30-526 43-774 47-858 50-928
18 Bobbin Stranding Cage 34-639 47-858 55-1001 65-1201
24 Bobbin Stranding Cage 38-749 51-940 63-1151 75-1601
Rotating Speed 6 Bobbin Stranding Cage 218 r/min 120 r/min 106 r/min 55 r/min
12 Bobbin Stranding Cage 118 r/min 110 r/min 97.5 r/min 45 r/min
18 Bobbin Stranding Cage 108 r/min 100 r/min 82.9 r/min 35 r/min
24 Bobbin Stranding Cage 98 r/min 90 r/min 74 r/min 25 r/min
Capstan Capstan Wheel Diameter 1000 mm 1600 mm 1800 mm 2000 mm
Maximum Haul-off Force 2T 5T 10T 15T
Motor Power 18.5 KW 22 KW 37 KW 55 KW
Bobbin Size 315 mm 400 mm 500 mm 630 mm
Center Payoff Bobbin 315 mm 1250 mm 1600 mm 1600 mm
Take-up Bobbin 1250 mm 2000 mm 2000 mm 2500 mm
Maximum Haul-off Linear Speed 25 m/min 30 m/min 34.7 m/min 20 m/min
Central Height 1000 mm 1000 mm 1000 mm



1100 mm

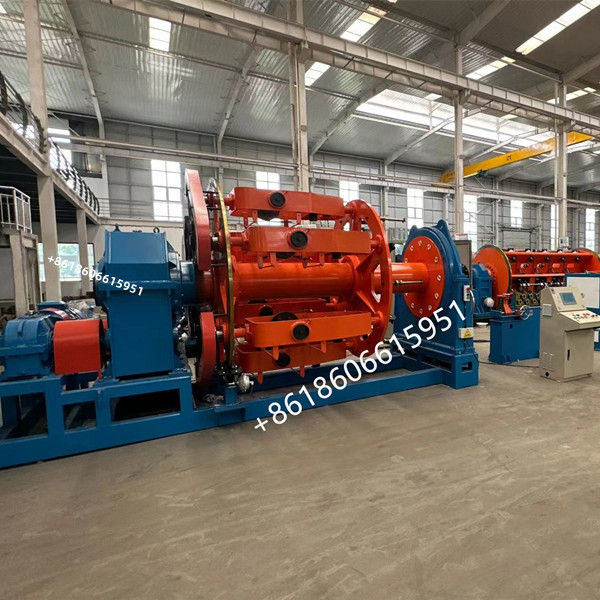

Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry 0Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry 1Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry 2Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry 3

Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry 4







Wire Basket Type 1mm Stranding Equipment For Cable Manufacturing Industry 5

Commercial Terms

Payment terms:EXW/FOB/CIF
Payment terms:Telegraphic Transfer. 30% deposit after PO confirmed, 70% Balance paid before delivery
Delivery:90 days after deposit
Package:covered with air bubble film, fixed by steel wire in container.
Warranty period:12 Months after B/L date. Any failure occurred within the period due to our responsibility, we’ll supply you the spare parts for free, and permanent technical support & consultation all lifelong for the machines

After-sales Service
● Our engineer will go to customer site for debug and installation when the machine reaches his factory. Customer has to arrange engineer return ticket, food & hotel at destination, and pay 200usd per day to our engineer when the installation work get done.

● We provide lifetime technical support, and our engineer is available to visit customer’s site in certain time.
