Armoring Function Rigid Stranding Machine Wire Cable Making 12+18+24

Product Details

Place of Origin: Hejian,China

Brand Name: Beyde

Model Number: 630/54

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: Container loading with safety packing

Delivery Time: 120 Days after receive deposit

Payment Terms: L/C, T/T

Supply Ability: 120 Set/Year

Get Best Price
Product Details
Highlight:

armoring rigid stranding machine

,

500 mm rigid stranding machine

,

armoring rigid strander

Warranty::
12 Months
PLC:
Siemens
Usage:
Stranding
Input Wire:
1.5-5.0mm
Max Stranding:
70mm
Max Rotating:
200r/min
Wrapping Head:
Option
Motor:
Siemens
Take-up:
3150mm
Pay-off:
3150mm
Capstan:
2000mm
Material:
Copper And Aluminum Conductor
Max. Stranding Section:
1300mm2
Max. Traverse Pitch:
100mm
Power Supply:
AC380V/50Hz
Product Name:
Rigid Stranding Machine
Warranty::
12 Months
PLC:
Siemens
Usage:
Stranding
Input Wire:
1.5-5.0mm
Max Stranding:
70mm
Max Rotating:
200r/min
Wrapping Head:
Option
Motor:
Siemens
Take-up:
3150mm
Pay-off:
3150mm
Capstan:
2000mm
Material:
Copper And Aluminum Conductor
Max. Stranding Section:
1300mm2
Max. Traverse Pitch:
100mm
Power Supply:
AC380V/50Hz
Product Name:
Rigid Stranding Machine
Product Description

Rigid Strander Machine with Armoring Function Wire Cable Making Machine 12+18+24



1.Application: This machine is mainly used to produce large section and large length steel cored aluminum strand and aluminum alloy wire without untwisting; It can also be used for non untwisting twisting and pressing of copper round and aluminum sector wire cores.

2.Overview of equipment composition



The whole machine is driven by separate motors. Each section of the hinge and traction is driven by a separate motor, and the hinge is driven to rotate through a special gear box. The control of the whole machine adopts Siemens S7-200 series PLC to ensure synchronization accuracy. In actual production, the operator can set the process parameters such as the pitch of each section of the stranding body and the speed of the production line on the touch screen according to the cable specifications to be produced, and automatically calculate the speed of each transmission part and control the paying off tension through PLC when starting up, so as to ensure the synchronization of the whole machine and the accuracy of the stranding pitch, and realize the stepless speed regulation of the whole machine.



Using digital quantity to detect wire breakage can accurately judge the wire breakage signal of any coil in each section of the hinge, and display which section and coil is broken on the touch screen of the main console, so that the accuracy and accuracy of wire breakage detection can be significantly improved and the detection accuracy can be ensured.



Pneumatic proportional valve controller is used for the reel tension of each section of the winch to automatically calculate and track the reel diameter and adjust the reel tension to ensure the stability of the reel tension. The tension proportional coefficient can also be manually adjusted in the touch screen when starting up.



Siemens S7-200 series PLC and collective PROFINET fieldbus are used for unified control of the whole machine operation to coordinate the working state, operation and speed control of all parts of the whole machine. The operation touch screen adopts Siemens color man-machine interface to control the operation



3.Main Parameter:

3.1 Input wire diameter Copper Ø 1.5-5.0mm
Aluminum Ø 1.8-5.0mm
3.2 Max stranding OD Ø 45mm
3.3 Max rotation speed 6 bobbin 230r/min(actual working speed)
12 bobbin 198r/min(actual working speed)
18 bobbins 178r/min(actual working speed)
24 bobbin 158r/min(actual working speed)
3.4 Strand cage motor power 6 bobbin 75KW(AC)
12 bobbins 75KW(AC)
18 bobbins 75KW(AC)
24 bobbin 75KW(AC)
3.5 Strand pitch(set one PLC) Infinitely adjustable
3.6 Traction line speed 45m/min
3.7 Capstan motor power 90KW(AC)
3.8 Pay-off bobbin size in cage PND 630
3.9 Forceful dual wheel capstan Ø 2200mm
3.10 Central pay-off size PND500-PND630
3.11 Take-up bobbin size PN1250-PN2500
3.14 Machine center high 1000mm

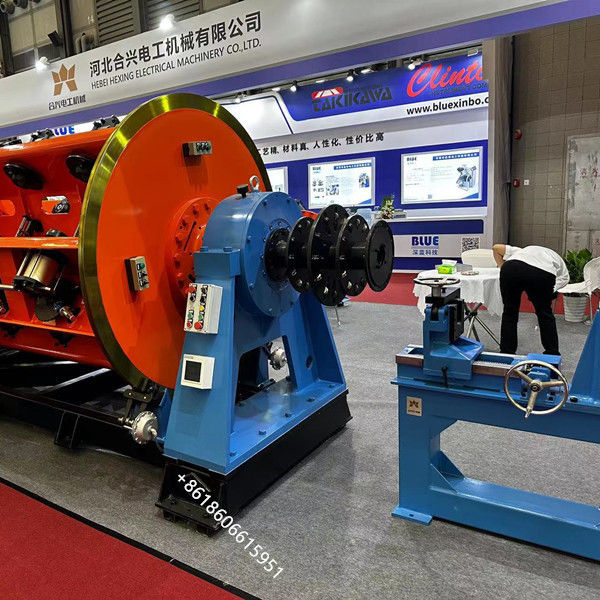

Armoring Function Rigid Stranding Machine Wire Cable Making 12+18+24 0
