Pre Twist Rigid Stranding Machine Max Linear Speed 80m/Min

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: JLK500/18+24
Minimum Order Quantity: 1 Set
Packaging Details: Container loading with safety packing
Delivery Time: 90 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Warranty:: 12 Months PLC: Siemens
Usage: Stranding Input Wire: 1.5-5.0mm
Max Stranding: Step-less Ajust Max Rotating: 250r/min
Wrapping Head: Option Motor: Siemens
Take-up: 2000mm Pay-off: 2000mm
Capstan: 1600mm Material: Copper And Aluminum Conductor
Max. Stranding Section: 200mm2 Max. Traverse Pitch: 120mm
Power Supply: AC380-415V/50Hz
High Light:

pre twist rigid stranding machine


80m/min rigid stranding machine


pre twist stranding machine

Rigid Cage Stranding And Screening Machine Max. Linear Speed: 80m/Min


We design a complete set of 710/630/500 Rigid Strander 127 Bobbin Row Loading Wire Stranding Machine for related enterprise and individual users, and constantly strive to meet the diverse needs of customers. Our global sales service network are all over the world, so the delivery time is short. We all wish to build win-win deals with our customers, so give us a call today and make a new friend!


1. Application:


This machine is mainly used for stranding copper and aluminum wires with 1+6+12+18+24+30+36 structure.

It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices. The splitter wheel uses natural splitting to avoid the wire core grazing during the stranding process. It is equipped with a complete disconnection automatic stop device, and the disconnection stop is directly controlled To each pay-off reel, the host will automatically stop immediately when the disconnected reel stops.


2. Main parameter:

Model JLK-500/630 JLK-710/720
Diameter of single wire(mm) Copper Φ1.5-Φ5.0 Φ1.5-Φ5.0
Copper Φ1.8-Φ5.0 Φ1.8-Φ5.0
Maximum cross-section
Copper 800 800
Aluminum 1000 1000
Maximum stranded conductor OD(mm) Φ45 Φ45
Maximum rotating speed
6B   192-218 146-160
12B Full loaded 170-192 146-160
18B   150-170 121-133
24B Empty loaded 130-147 100-100
30B   117-132 83-91
Stranding cage pitch step-less can be set on the touching screen All the cages Step-less, adjustable Step-less, adjustable
Stranding cage motor power(KW) 6B 55 75
12B 75 90
18B 90 110
24B 110 132
30B 132 160
Pre-twisting& compacting Pitch (mm) 400-3000 400-3000
Motor power (KW) 18.5 18.5
Taping device Maximum speed(RPM) 500 500
Taping pitch(mm) Step-less, adjustable Step-less, adjustable
Tape reel(mm) Φ600XΦ80 Φ600XΦ80
Motor power(KW) 11 11
Tape width(mm) 15-60 15-60
Capstan Capstan wheel diameter(mm) Φ2500 Φ2500
Maximum linear speed(m/min) 40 40
Maximum haul-off force(N) 15000 15000
Motor power(KW) 110 110
Center payoff reel   PN800-PN1600 PN1000-PN2000
Take-up reel PN1250-PN2500 PN1600-PN3150
Central height(mm) 1000 1000




3. Features:
3.1. Rigid frame stranding machine adopts Heavy duty frame type Stranding cage, cage supported on self aligning roller bearing on both ends. Totally enclosed gear, centralized lubricating system for bearing, drive to cages. Which improves the smooth operation and reduces noise.

3.2. The rigid stranding machine adopts a constant tension pay-off device for each bobbin to ensure its quality.

3.3. This frame type strander is of high mechanical strength, high reliability, high production efficiency, low energy consumption, compact structure and easy operation.

3.4. Motorised / manual bobbin pintles with safety interlock. Wire-break detection installed for each bobbin.

3.5. The rigid strander adopts frequency converter motor drive that realizes stepless speed regulation, smooth start, no impact when replacing spools and no damage to the machine.

3.6. Manufactured by using materials from domestic and abroad famous factories, the wire stranding machine has long usage life.


4. Reference picture of rigid strander:

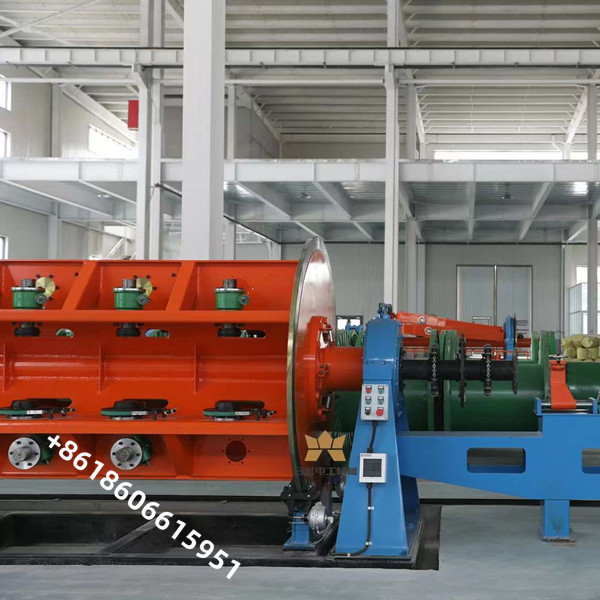

Pre Twist Rigid Stranding Machine Max Linear Speed 80m/Min 0
