Best Quality Cable Laying Up Machine Secter Cable With Pre-Twist Founction
1.Application:
This machine is mainly used for round power cables, back twist ratio fix at 100%, for 2 to 5-cores max 240mm2
The equipment is composed of PLC program control + touch screen +inverter, control. The electric control system is advanced,
easy to operate and reliable. Stranding cage adopts double support structure of front and rear large bearings, which is more
suitable for high-speed rotation and improves production efficiency
2. Main technical parameter:
| Input line dia. | Φ6-Φ30 mm (10-240mm2) |
| Strand cage max rotation speed | 50r/min |
| Max lay-up diameter of cable bundle | Max Φ80mm |
| Stranding Direction | S/Z |
| Lay-up pitch | 300-2500mm (stepless adjustable) |
| Non-metallic wrapping head – 2 pad | 500r/min |
| Pitch of Non-metallic wrapping head | 0-250mm (stepless adjustable) |
| Linear max speed | 50m/min |
| Haul-off Max pull force (Caterpillar type) | 1600kg |
| Pay-off reel size in cage - Tip diameter Φ95mm | PN1250 |
| Column Pay-off reel size - Tip diameter Φ95mm | PN1600 (PN1000 to PN1600) |
| Portal take up reel size - Tip diameter Φ95mm | PN2500 (PN1600 to PN2500) |
| Main Cage motor power | 45 kW (AC inverter motor) |
| Motor power of Non-metallic wrapping head | 11 kW (AC inverter motor) |
| Capstan motor power | 22 kW(AC inverter motor) |
| Take-up motor power | 5.5 kW (AC inverter motor) |
| Machine high | 1000mm |
| Machine direction | Right to Left (Take up on the Left) |
| Installed power | 85kw - 3 phase 380V50Hz |
| Total dimension (LxWxH)mm | 35000x6000x5000 mm |
| Weight (Kg) | After loading container |
3. Main components:
| Φ1600column pay-off stand | 1 set |
| 4 reels stranding cage | 1 set |
| Double row closing die holder | 1 set |
| Φ630x2 Double reel Non-metallic wrapping machine | 1 set |
| Mechanical + Electronic length meter counter | 1 set |
| 1600kg pneumatic caterpillar | 1 set |
| Φ2500 portal type take up with traversing strand | 1 set |
| Electronic control system | 1 set |
| Safety protection device | 1 set |
4. Documents with machine
5. Main application cable type:

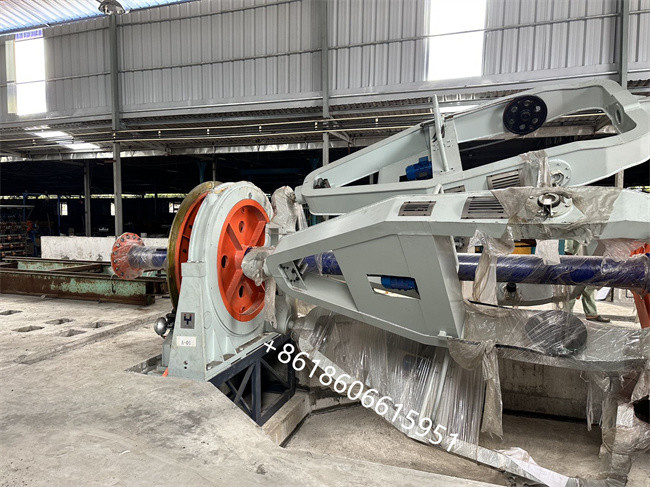

5. Main cage picture of laying-up machine in Vietnam:
5.Electrical controlsystem
6. BEYDE' factory picture:
