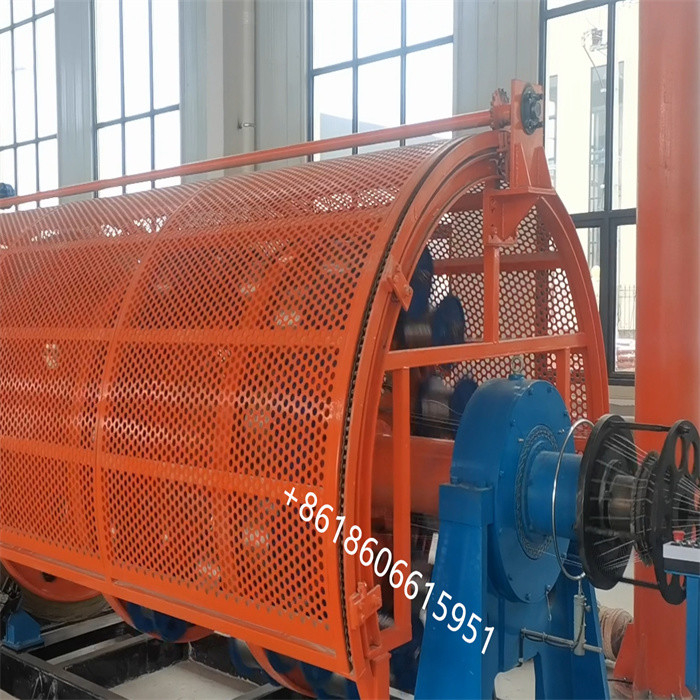

High Speed Flat Steel Wire Shielding And Armoring Machine 300/72

Beyde Manufacturing High Speed Flat Steel Wire Shielding And Armoring Machine 300/72

1. Equipment characteristics

• unit is equipped with a human-machine interface, and various operating parameters can be displayed and set in real-time, which is intuitive and convenient.
• The actual rotational speed and traction line speed of each section of the twisted cage can be visually displayed.
• The meter wheel is equipped with rubber coating and pneumatic compression device, effectively improving the meter accuracy. It can be connected to the main control cabinet to set the meter parking.
•  The disconnection position can be accurately displayed on the display screen of the operation cabinet, making it easy to find.
• 4The disconnection alarm signal is transmitted wirelessly, effectively avoiding confusion or failure of the transmission line.
• Adopting a cabinet type touch screen control console, it is easy to operate and has a beautiful form.
• The auxiliary reinforcement of the 5.7 host hinge adopts rectangular square tubes to avoid the shaking of the single board.
• The new belt type tensioning device adopts high wear-resistant friction blocks, making adjustment more convenient and has a longer lifespan.
• The internal cables and air ducts are hidden in the base square tube to avoid damage and disorder.
• Add reinforcement to the front bracket of the host to increase stability. The wire mold base is connected to the front bracket of the host, which has stronger integration and better mechanical rigidity.
• The front and rear axle heads of the main engine are made of integrated cast steel parts to avoid cracking caused by welding.
• has increased the area of the main engine brake area to improve braking performance.
•  Surface polishing of traction wheels

2. Main Parameter

3.Operating directon: Equipment operation direction: Right head machine, facing device operation, left release line, right take-up line

4.Color:

•  Rotating parts:RAL2004
•  Main body:RAL5015
• Other parts:RAL7035

5.Main parts brand:

6. Document with machine
