Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors

Name: Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors
Brand: Beyde Trading Co.,Ltd
SKU: 500/1+6+12
Availability: InStock

Product Details

Place of Origin: Hebei, China

Brand Name: Beyde

Model Number: 500/1+6+12

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety protect packing for sea freight

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                precise planetary stranding machine, bare wire planetary stranding machine, insulated conductors planetary strander


Usage:	Stranding	Color:	Customized
Application:	Metal Wire,Al Wire,Steel Wire Rope	Name:	Planetary Stranding Machine
Voltage:	380voltage Or Others	Function:	Control Cable,power Cable,signal Cable Communication Cable Forming,stranding Wire And Cable
Stranding Pitch:	Step-less	Taping Head:	500
Plc:	Siemens,optional	Optional:	Magnetic Hysteresis
Bearing:	NSK/SKF

Usage:	Stranding
Color:	Customized
Application:	Metal Wire,Al Wire,Steel Wire Rope
Name:	Planetary Stranding Machine
Voltage:	380voltage Or Others
Function:	Control Cable,power Cable,signal Cable Communication Cable Forming,stranding Wire And Cable
Stranding Pitch:	Step-less
Taping Head:	500
Plc:	Siemens,optional
Optional:	Magnetic Hysteresis
Bearing:	NSK/SKF

Product Description

Planetary Stranders And Cablers Minimize The Twisting Of Bare Wire/Insulated Conductors

1. Product Description
Planetary stranding machine are designed in 2 versions: Light duty (L/D), for cabling insulated conductors with low bobbin weight and; heavy duty (H/D), for stranding bare wire with high bobbin weight.

The cage of a planetary stranding machine can be set in one of 3 modes:

Pure Planetary
Variable backtwist
Rigid type

Universal Planetary Cabler

Direction of wire travel: Left to right
Cage configuration: Single cage 6-12 positions
Reel size:
6 positions (500 mm) flange diameter x (500 mm)overall width
12 positions .
Fabricated rotor, with both ends supported on encircling bearings
Shaft type cradles, with rope brake tensioning mechanisms
Lay plate, closing die assembly
(400 mm) concentric taping head, AC motor, controls

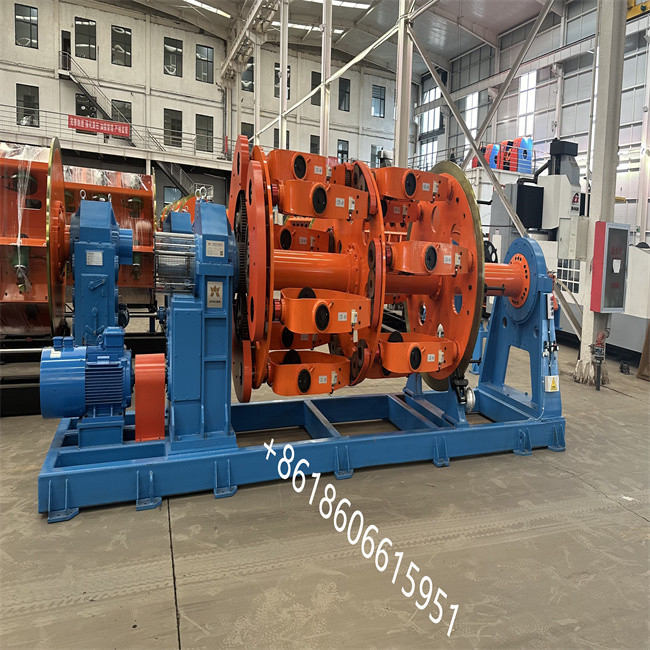

Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors 0

Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors 1

Main parameter of planetary strander

Input wire diameter	Copper Ø 1.5-Ø 5.0mm
	Aluminum Ø 1.8-Ø 5.0mm
	Insulated wire Ø2.0-Ø 8.0mm
Max stranding OD	Ø20mm
Max diameter of center hole in stranding cage	Ø30mm
Max rotation speed	90r/min
Stranding pitch	80-500mm (Electric control stepless adjustable, customized)
Max line speed	30m/min
Rotation speed of taping machine	700r/min
Pitch of taping machine	10-100mm (Electric control stepless adjustable, customized)
6 Bobbins motor power	37KW(AC)
Capstan motor power	37KW(AC)
Taping machine motor power	2.2AC)
Take-up motor power	4.0KW(AC)
Pay-off bobbin size in stranding cage	Ø500mm
Double capstan wheel diameter	Ø1200mm
Central pay-off bobbin size	Ø500m- Ø630
Take-up bobbin size	Ø800m- Ø1000m
Machine center high	1000mm
Total power	85kw

Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors 2

Bearing brand	(HRB.)
Low voltage appliance brand	(SCHNEIDER)
Brand of pneumatic component	(AIRTAC)
Brand of main drive motor	(SIEMENS)
Take-up drive motor brand	(SIEMENS)
Frequency conversion controller	(INOVANCE)
PLC	(SIEMENS S7-1200 smart)
Touch screen	(SIEMENS KTP1200)

Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors 4

5.Color:

5.1 Rotating parts: RAL2004 outside orange

5.2 Main body of the equipment: RAL5015

5.3 Bottom frame parts: RAL9017 black

5.4 Other parts: RAL5017 outer blue / RAL9010 white / RAL9017black

5.5 Or customized
