| Place of Origin: | China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | 630/6+12+18 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Standard International Shipment Packing |
| Delivery Time: | 90 days |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union |
| Supply Ability: | 200 set/year |
| Usage: | Stranding | Name: | Rigid Frame Stranded Machine |
|---|---|---|---|
| Warranty: | One Year | Model NO.: | JLK400---JLK630 |
| Automatic Grade: | Automatic | Maximum Stranding Diameter: | 60mm |
| Traction Speed: | 8.37~63.63m/Min | Central Pay-off Bobbin: | Pn800~Pn1600 |
| Take-up Bobbin: | Pn1250~Pn2500 | Motor: | Siemens |
| Stranding Pitch: | 67~1572mm | ||
| High Light: | 1+6+12+18 stranding machine,copper wire cable making stranding machine,rigid frame wire stranding machine |
||

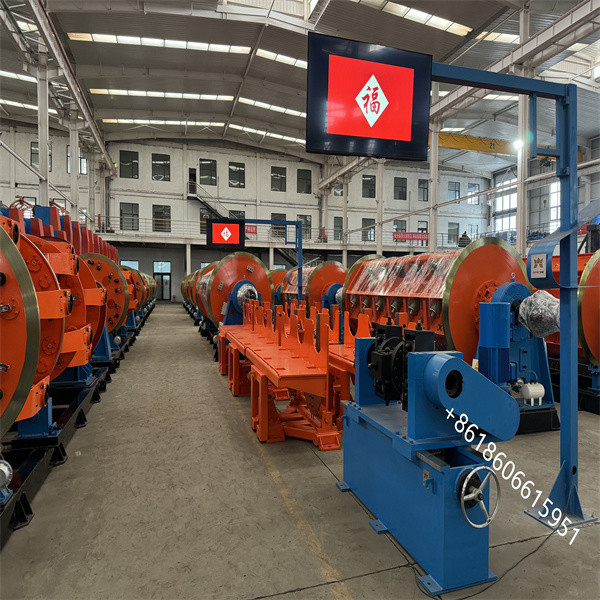

1+6+12+18 Copper Wire and Cable Making Rigid Frame Stranding Machine Manufacturers Suppliers
1.Application
The machine is used for stranding insulated cable core of control cable and steel wire armoring for cable.
Sector Conductor Stranding and Compacting
Round Conductor Stranding and Closing
Pre-spiral Sector/Milliken Segment Compacting
Rigid frame stranding machine, a kind of cage type wire stranding machine, is suitable for stranding round, compressed, compacted Al, Cu and aluminum alloy conductor with die or roll with long length and large cross section; stranding high quality strander conductor for low, medium and extra high voltage (EHV) power cables; stranding prespiralled, straight sector shaped, milliken conductor; stranding overhead conductor ACSR, AAAC, AAC; Copper screening of power cables; Steel wire, strip armouring.
The equipment features high rigidity, high power and high speed. Itso-sin(DeYang) Wire &Cable Equipment , stranding machine manufacturer, can also provide configurations for this cage type stranding machine in accordance with customers’ requirements.
Stranding compressed, compacted round or sector shaped ( straight or pre-spiraling ) as per customer requirements.
We also customise this cage type stranding machine in accordance with customers’ requirements.
| Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 | |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm | |
| 18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm | |
| 24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm | |
| 30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min | |
| 18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min | |
| 24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min | |
| 30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min | |
| Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
| Maximum Haul-off Force | 30 T | 30 T | 40 T | |
| Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
| Motor Power | 90-180 KW | 110-180 KW | 130-180 KW | |
| Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 | |
EBYDE is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Puller, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.
