Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 630/12+18
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Standard Sea Worthy Package
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: |
Stranding |
Name: |
Rigid Frame Stranded Machine |
Color: |
Customer Requirement |
Warranty: |
12 Months |
Spee: |
250rpm |
Conductor Size: |
1.5 Mm-5.0 Mm |
Motor: |
Siemens |
HS Code: |
847940 |
Max. Line Speed Of Capstan: |
60 |
Max. O.D. Of Cable Stranded: |
35mm |
Automatic Grade: |
Automatic |
Usage: |
Stranding |
Name: |
Rigid Frame Stranded Machine |
Color: |
Customer Requirement |
Warranty: |
12 Months |
Spee: |
250rpm |
Conductor Size: |
1.5 Mm-5.0 Mm |
Motor: |
Siemens |
HS Code: |
847940 |
Max. Line Speed Of Capstan: |
60 |
Max. O.D. Of Cable Stranded: |
35mm |
Automatic Grade: |
Automatic |

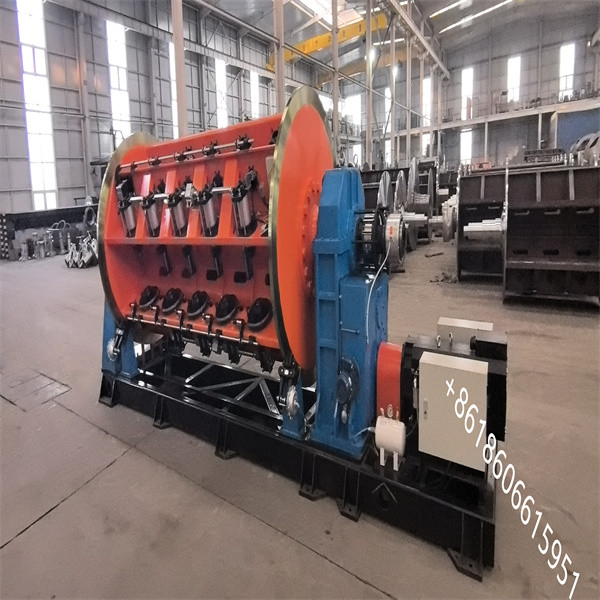

Compact Stranded Conductor Manufacturing Equipment High Speed Rigid Frame Stranding Machine
Application:
Compact Stranded Conductor Manufacturing Equipment High Speed Rigid Frame Stranding Machine.
Advantages:
1. High speed: the maximum speed of 630 wire disc 6 discs reaches 350rpm;
2. Multiple specifications: the minimum diameter of wire disc should be 400mm and the maximum diameter should be 800mm. The minimum number of single segment wire disc should be 6 and the maximum number should be 48.
3. Multi-form tension: hysteresis tension, mechanical tension, mechanical belt feedback tension, pneumatic tension, etc.
4. hydraulic, electric side lower upper plate, side upper plate and so on a variety of overall plate options;
5. manual clamping, pneumatic clamping, electric clamping and other clamping mechanisms can be selected.
Main component
Feature
Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 | |
Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm | |
Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm | |
18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm | |
24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm | |
30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm | |
Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min | |
18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min | |
24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min | |
30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min | |
Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
Maximum Haul-off Force | 30 T | 30 T | 40 T | |
Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
Motor Power | 90-180 KW | 110-180 KW | 130-180 KW | |
Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 | |
Center Payoff Bobbin | 1600*800*80 | 1600*800*80 | 1600*800*80 | |
Take-up Bobbin | 2500*1500*125 | 2500*1500*125 | 3150*1900*160 | |
Maximum Haul-off Linear Speed | 69 m/min | 69 m/min | 62 m/min |
BEYDE team always here for you!
We provides a series of solutions in wire and cable field to help promote improvement of our customers' business. we not only
provide equipment and solutions, but also focus on offering high-quality service such as free layout design of cable factory, overseas installation guidance, operation training and so on.
Upgrating service:
1. Design the top hole of special machine processing frame to ensure the concentric degree of two holes so as to avoid the concentric problem affecting the tension;
2. Optimized clamping structure, more stable pneumatic tension, more reliable clamping bearing;
3. Ground shaft type frame stranding gear box gear tooth grinding processing to reduce noise;
4. The design and optimization of the installation mechanism of the drive shaft of the frame stringing synchronous belt of the motor division ensures the machining accuracy and facilitates the tensioning adjustment of the synchronous belt;
5. Newly added upper disc mechanism at the lower hydraulic side enriches the upper disc varieties;
6. The newly added electric clamping mechanism enriches the clamping form.
