High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine

Name: High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine
Brand: Beyde Trading Co.,Ltd
SKU: 630/1+6+12
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 630/1+6+12

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Payment Terms: L/C,, D/A, D/P, T/T, Western Union

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                High Performance Rigid Stranding Machine, Copper Wire Conductor Stranding Machine, 1+6+12 Stranding Machine


Usage:	Stranding	Name:	Rigid Frame Stranded Machine
Color:	Customer Requirement	Warranty:	12 Months
Power:	75kw	Wire Material:	Steel,copper,aluminum
Wire Range:	1.5mm-5.0mm	Speed:	230r/min
Pitch:	Stepless Adjustable	Max Twist OD:	25mm
Pay-off:	630mm

Usage:	Stranding
Name:	Rigid Frame Stranded Machine
Color:	Customer Requirement
Warranty:	12 Months
Power:	75kw
Wire Material:	Steel,copper,aluminum
Wire Range:	1.5mm-5.0mm
Speed:	230r/min
Pitch:	Stepless Adjustable
Max Twist OD:	25mm
Pay-off:	630mm

Product Description

High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine

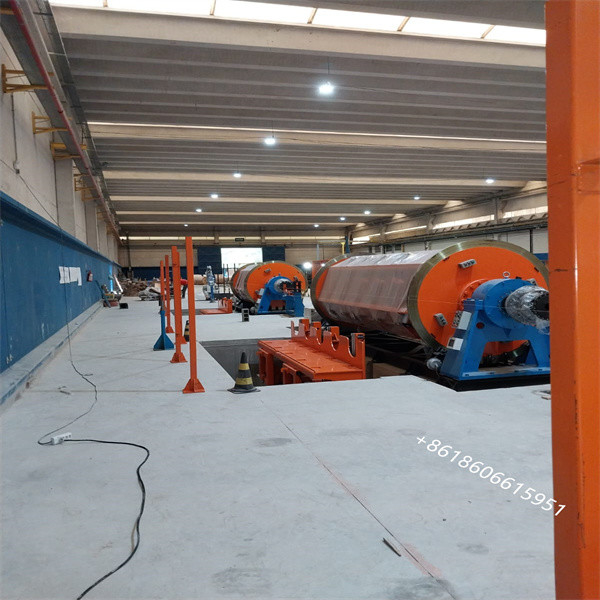

High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine 0

Products feature

The machine is used to parallel wires and high signal transmission cable twisting and pair twisting,wrapping once finished.Pay-off
bobbins placed by cross type,the linear speed of difference of pay-off bobbin with drawing wheels forming the pitch,suit to high
requirement standard telecommunication cables production.Full-intelligent control using whole set of servo control,touch screen
directly setting the pitch,speed is steady.The quality is improved obviously.

1.Application
The machine is used for stranding insulated cable core of control cable and steel wire armoring for cable.

Sector Conductor Stranding and Compacting
Round Conductor Stranding and Closing
Pre-spiral Sector/Milliken Segment Compacting

2. Application

Soft/Semi-hard Aluminum Trapezoid Wire Stranding(T/S/Z)
Carbon Fiber Reinforced Core Stranding
Expanded Diameter Conductor Stranding

Technical Parameter

Production dia.(mm)	45
Stranding cage speed ( r/min)	75-231	64-170	46-146
Stranding pitch (mm)	71-780	84-911	89-1163
Diameter of wheel haul-off (mm)	2000	2500	2500
Production speed (m/min)	14.3-58.5		13.1-53.5
Take-up reel	PN1250-PN2500		PN1600-PN3150

High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine 1

High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine 2

High Performance Rigid 1+6+12 Copper Wire Conductor Stranding Machine 3

8. FAQ
− Q: What can we offer our customers?

A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
A: We have more than 40 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
