Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 630/1+6+12+18
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Safety container packing
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: |
Stranding |
Name: |
Rigid Frame Stranded Machine |
Warranty: |
12 Months |
Power: |
75kw |
Product Name: |
Rigid Frame Stranding Machine |
Wire Material: |
Steel,copper,aluminum |
Stranding Pitch: |
Stepless Adjust On PLC |
Speed: |
230r/min |
Take-up: |
PN1000-2000 |
Pay-off: |
PND500-630 |
PLC: |
Siemens |
Touch Screen: |
Siemens |
Usage: |
Stranding |
Name: |
Rigid Frame Stranded Machine |
Warranty: |
12 Months |
Power: |
75kw |
Product Name: |
Rigid Frame Stranding Machine |
Wire Material: |
Steel,copper,aluminum |
Stranding Pitch: |
Stepless Adjust On PLC |
Speed: |
230r/min |
Take-up: |
PN1000-2000 |
Pay-off: |
PND500-630 |
PLC: |
Siemens |
Touch Screen: |
Siemens |

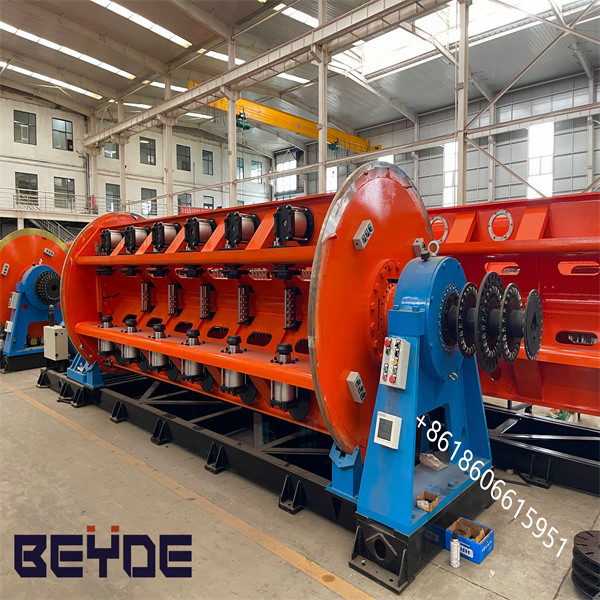

Copper Wire and Cable Making Rigid Frame Stranding Machine Manufacturers Suppliers
\
| This machine is used for stranding bare copper,aluminum and ACSR conductor with compacting use | |||
| Model Main Specification | CLK400 | CLK500 | CLK630 |
| Single Wire Diameter | 1.2mm-5mm | 1.2mm-5mm | 1.2mm-5mm |
| Max Stranded Diameter | 50mm | 50mm | 50mm |
| RPM | 88-200r/min | 78-189r/min | 65-143r/min |
| Stranding Pitch | 49-630mm | 49-816mm | 58-978mm |
| Line speed | 55.35m/min | 63.63m/min | 63.63m/min |
| Pay Off Drum Size In Cage | PN400mm | PN500mm | PN630mm |
| Central Pay Off Drum Diameter | PN800-1600mm | PN800-1600mm | PN800-1600mm |
| Take Up Drum Diameter | PN800-1600mm | PN1000-2000mm | PN1000-2000mm |
Beyde has three factories, covers an area of 120000 square meters.They are located in Nanhai District, Foshan. Our company has a technical administration team who engages wire and cable equipment industrial more than ten years, as well as experienced engineer and skilled workers. Our company focuses on innovation and R & D of electrical machinery.Our products include cable laying up machine,cable stranding machine, cable extrusion machine and auxiliaries.We not only in the domestic sales, but also far sales in Asia, Southeast Asia, Africa and so on.
