Aluminium Wire Rigid Frame Stranding Machine Manufacturers Suppliers

Basic Information
Place of Origin: China
Brand Name: Beyde
Model Number: 500/1+6+12+18
Minimum Order Quantity: 1 set
Packaging Details: Safety container packing
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Stranding Name: Rigid Frame Stranded Machine
Warranty: 12 Months Power: 55kw
Product Name: Rigid Frame Stranding Machine Wire Material: Steel,copper,aluminum
Stranding Pitch: Stepless Adjust On PLC Speed: 230r/min
Take-up: PN1000-2000 Pay-off: PND500-630
PLC: Siemens Touch Screen: Siemens
High Light:

Aluminium Wire Stranding Machine

,

Rigid Frame Stranding Machine

Aluminium Wire Rigid Frame Stranding Machine Manufacturers Suppliers

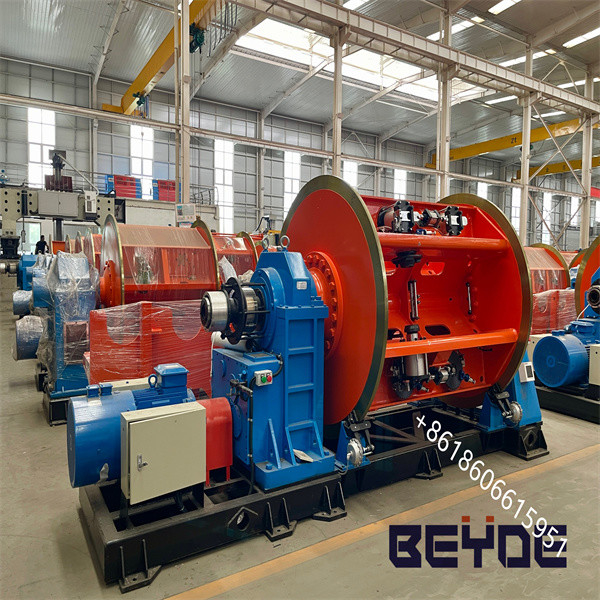

Aluminium Wire Rigid Frame Stranding Machine Manufacturers Suppliers 0

Product Description

Why choose BEYDE???
1.Our cable machine factory has been in operation since 1983
2.We have a professional design team, engineering team, and production team
3.We can provide you with on-site installation and training on machine usage services
4.Free provision of some consumables for one year
5.We can design a factory for you according to your needs and create a cable factory that belongs to you
6.We specialize in cable equipment, including stranding machines, extruders, wire drawing machines, as well as various testing and auxiliary equipment

main components

1.Φ630Shaft-less pay-off rack
2.'#' type leading wire stand
3.6-Bobbins,12-Bobbins,18-Bobbins twister
4.Wire-stranded and Tight pressing line die holder
5.Overall hanging device under the side
6.Track meter counting
7.Φ600Double bobbins wrapped device
8.Φ2000Two wheeled device with double-power
9.Φ2600Portal pay-off and take-up stand
10.Electric control system
11.Arc type electric protective cover

Aluminium Wire Rigid Frame Stranding Machine Manufacturers Suppliers 1
Aluminium Wire Rigid Frame Stranding Machine Manufacturers Suppliers 2
This machine is used for stranding bare copper,aluminum and ACSR conductor with compacting use
Model Main Specification CLK400 CLK500 CLK630
Single Wire Diameter 1.2mm-5mm 1.2mm-5mm 1.2mm-5mm
Max Stranded Diameter 50mm 50mm 50mm
RPM 88-200r/min 78-189r/min 65-143r/min
Stranding Pitch 49-630mm 49-816mm 58-978mm
Line speed 55.35m/min 63.63m/min 63.63m/min
Pay Off Drum Size In Cage PN400mm PN500mm PN630mm
Central Pay Off Drum Diameter PN800-1600mm PN800-1600mm PN800-1600mm
Take Up Drum Diameter PN800-1600mm PN1000-2000mm PN1000-2000mm



Machine main electric brand
Motor: Siemens (china) Motor
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands,etc.



Aluminium Wire Rigid Frame Stranding Machine Manufacturers Suppliers 3



Beyde has three factories, covers an area of 120000 square meters.They are located in Nanhai District, Foshan. Our company has a technical administration team who engages wire and cable equipment industrial more than ten years, as well as experienced engineer and skilled workers. Our company focuses on innovation and R & D of electrical machinery.Our products include cable laying up machine,cable stranding machine, cable extrusion machine and auxiliaries.We not only in the domestic sales, but also far sales in Asia, Southeast Asia, Africa and so on.
