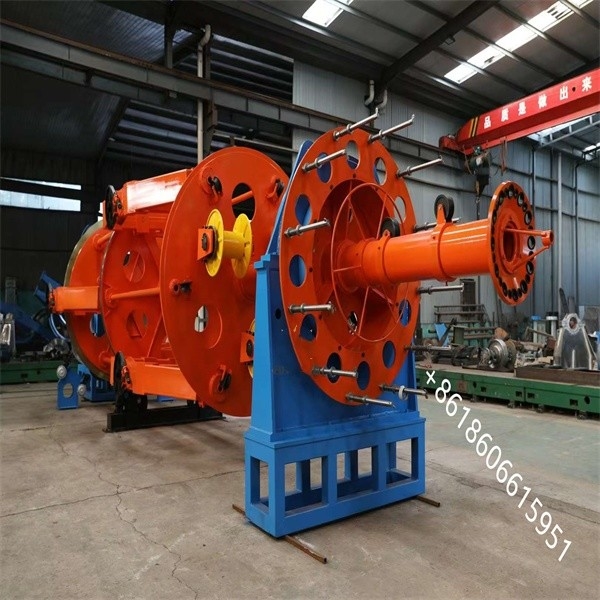

New Energy Vehicles Planetary Stranding Machine And Cabling Machine 1250/6
1. Application
Cradle type Laying up machine is used for making PVC,PE,XLPE,RUBBER insulated power cable , tapping and amoring rubber cable, special stranded cable and so on. and the core can be round or sector.The equipment is controlled by independent motor, and the cable pitch can be adjusted arbitrarily.
2. Features
2.1 The line is control by PLC for regulating, starting, operation and synchronization of respective electric motors. Electrical control system is advanced, easy and reliable operation.
2.2 With the improvement of the overall structure, some details have also been optimized to make the cable travel more smoothly, bend less and operate more conveniently.
3. Mechanical and electrical accessories brand
3.1.Bearings : Chinese famous brands “Ha, WA and Luo”
3.2.Motor : Siemens
3.3.AC driver : Siemens
3.4.Touch screen: Siemens
3.5.Low voltage electrical components: Siemens
4. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbin Size | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |
FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 40 years of professional experience in the production of cable machinery, providing high-quality,high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
