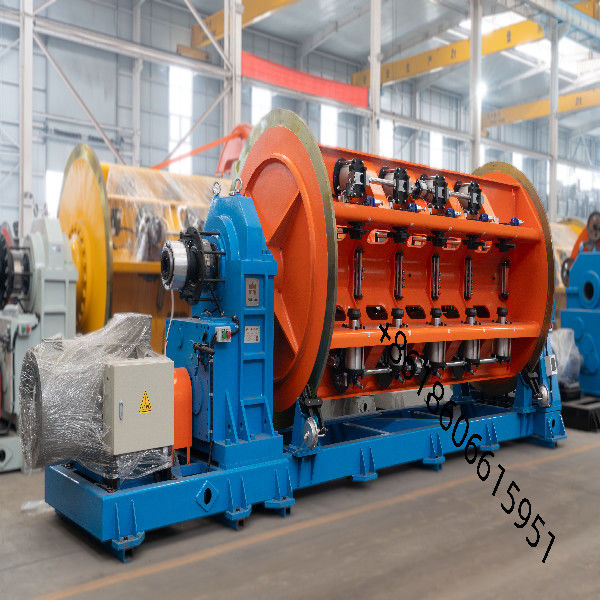

Reliable Planetary Stranding Machine With Anti Twist Device JLK/2+18+24

Reliable Planetary Stranding Machine With Anti Twist Device JLK/2+18+24

Product Description:

This machine is mainly used to produce large section and large length steel cored aluminum strand and aluminum alloy wire; It can also be used for pressing of copper round and aluminum sector conductor.

Features:

The whole machine is driven by separate motors. Each section of the stranding body and traction are driven by separate motors. The stranding body is driven to rotate through a special gearbox. The whole machine is controlled by Siemens S7-200 series PLC to ensure synchronization accuracy. During actual production, the operator can set the strand pitch of each section, production line speed and other process parameters on the touch screen according to the cable specifications required to be produced, and automatically calculate the speed and control of each transmission part through PLC when starting up. Pay-off tension, etc. ensure the synchronization of the entire machine and the accuracy of the stranding pitch, and achieve stepless speed regulation of the entire machine.
Using digital quantity to detect wire breakage can accurately determine the wire breakage signal of any disk in each section of the strand, and display which section and disk is broken on the touch screen of the main console, making the wire breakage detection more precise and accurate. Significantly improved to ensure detection accuracy.
The reel tension of each section of the strand adopts a pneumatic proportional valve controller, which automatically calculates and tracks the reel diameter to adjust the reel tension to ensure the stability of the reel tension. The tension proportion coefficient can also be manually adjusted on the touch screen when starting up.
The entire machine operation uses Siemens S7-200 series PLC and integrated Profinet field bus for unified control, coordinating the working status, operation and speed control of the electrical parts of the entire machine. The operation touch screen adopts Siemens color human-machine interface to control the operation.
Visual large-screen LCD high-definition display (double-sided 40") comprehensively displays on-site product information and status, and provides real-time dynamic monitoring. The operation terminal adopts HMI (14") for unified management, with a simple appearance and easy operation

Main parameter:
