Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12

Name: Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12
Brand: Beyde Trading Co.,Ltd
SKU: 400/1+6+12
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Certification: CE

Model Number: 400/1+6+12

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Compact Conductor Making Machine, Rigid Frame Stranding Machine, Conductor  Stranding Machine


Inlet Wire Dia:	Φ1.0-Φ5.0mm.	Traction Line Speed:	61 M/min
Voltage:	220V/380V	Bobbin Diameter:	500mm
Take Up Spool:	Φ1250-2500mm	Pitch Range:	Stepless
Linear Speed:	61m/min	Capstan Wheel:	1600mm
Driven Motor:	55KW	Transmission:	Separate Motor
Pay Off Size:	1600mm Or According To Cable Size	Finished Dia:	25mm
Twist Direction:	S / Z Optional	Direction:	Decided By User

Inlet Wire Dia:	Φ1.0-Φ5.0mm.
Traction Line Speed:	61 M/min
Voltage:	220V/380V
Bobbin Diameter:	500mm
Take Up Spool:	Φ1250-2500mm
Pitch Range:	Stepless
Linear Speed:	61m/min
Capstan Wheel:	1600mm
Driven Motor:	55KW
Transmission:	Separate Motor
Pay Off Size:	1600mm Or According To Cable Size
Finished Dia:	25mm
Twist Direction:	S / Z Optional
Direction:	Decided By User

Product Description

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12

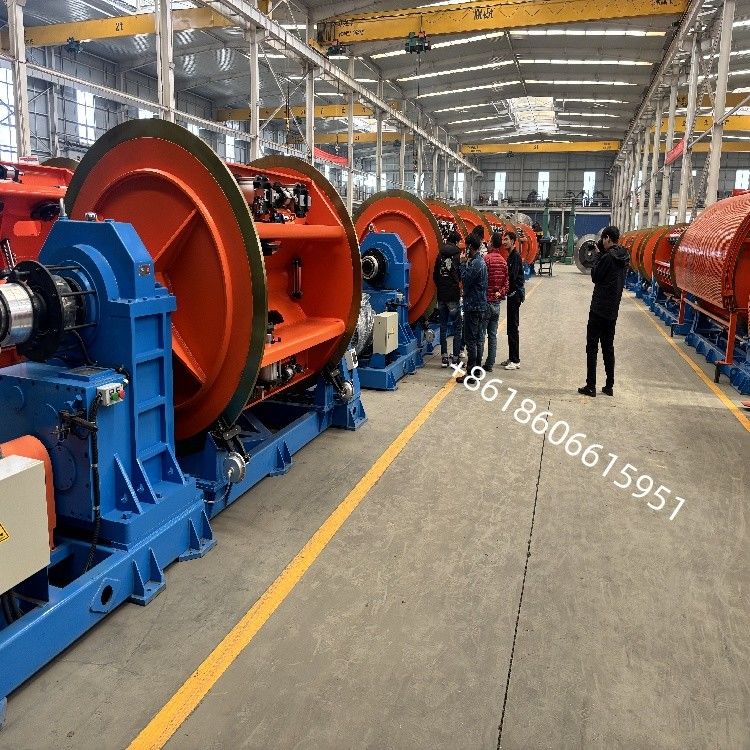

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12 0

Application

It is suitable for the production of 1+ 6+ 12 large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding.

1. Highly compacted conductor
2. Prespiralled / straight sector shaped / Milliken conductor
3. Overhead conductor ACSR/AAAC/AAC
4. Pre-shaped wire (TW) overhead conductor
5. Copper screening of power cables

No	Items	Features
1	Single wire Diameter	Φ 1.2 - Φ 5.0mm
2	Max stranded Diameter	Φ25mm
3	Max cage rotate speed	6B:210RPM 12B:190RPM
4	Capstan wheel diameter	Ф1600mm
5	Central pay-off bobbin	Ф630mm
6	Pay-off bobbin in cage	Ф4000mm
7	Take-up bobbin	Ф800mm- Ф1600mm
8	Main motor power	55KW,AC,380V,50Hz
9	Stranding pitch range	50-600mm stepless
10	Central height of machine	1000mm

Rigid frame type machine general information
Rigid frame type machines are a variant of cage-type stranding machines that don’t have the pay-off device, because the workpiece on the coils is installed directly into the stranding stands, which greatly simplifies the technology. In the torsion part, the pay-off coils with wire are arranged in 3 rows as close as possible to the rotation axis, it allows to increase the rotation speed to 180-350 rpm.

Rigid frame type lines is used for stranding round and sectoral (profiled) cores of power cables. Conventional structure is 6+12+18+24+30.

There are also more complex lines of this type. A cantilever-type passive pay-off machine is more often used as the central pay-off device, and it is also equipped with an additional large-sized pay-off device if it’s necessary.

A column-type or portal-type take-up machine can be used as a take-up device.

No.	Items	Quantity
1	Φ 630mm Manual type pay-off	1 Set
2	400/6+12Bobbins cages	1 Set
3	Side loading system for each cage	1 Set
4	Wire-stranded mould stand	1 Set
5	Wire-stranded and Wire-compacted mould stand	1 Group
6	Meter counter	1 Set
7	Φ1600mm Double capstan wheels	1 Set
8	Φ1600mm Column type take-up with traverse	1 Set
9	Transmission system	1 Set
10	Electric control system	1 Set
11	Safe fence	1 Set

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12 1

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12 2

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12 3

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12 4

Compact Conductor Making Machine Rigid Frame Stranding Machine JLK400/6+12 5
