Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander

Name: Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander
Brand: Beyde Trading Co.,Ltd
SKU: 630/18+24+30
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Certification: CE

Model Number: 630/18+24+30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatically Stop Rigid Frame Strander, Customized Voltage Rigid Frame Strander, Rigid Frame Strander


Usage:	Stranding	Color:	Customized
Name:	Rigid Frame Wire Cable Stranding Machine	Application:	Copper Or Aluminum Conductors Stranding
Voltage:	380V/415V 50/60HZ	Power:	95KW/UNI
PLC:	SIEMENS	Warranty:	12 Months
Cage Rotate Speed:	190r/min.	Take-up Reel:	PND2000-PND3150
Type:	Automatic Machine	E-twist Pitch:	80-1200mm

Usage:	Stranding
Color:	Customized
Name:	Rigid Frame Wire Cable Stranding Machine
Application:	Copper Or Aluminum Conductors Stranding
Voltage:	380V/415V 50/60HZ
Power:	95KW/UNI
PLC:	SIEMENS
Warranty:	12 Months
Cage Rotate Speed:	190r/min.
Take-up Reel:	PND2000-PND3150
Type:	Automatic Machine
E-twist Pitch:	80-1200mm

Product Description

Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander

Application:

Rigid frame strander is mainly used for the twisting of copper, aluminum and ACSR, and also suitable for the cabling of the small-section control cables.

Rigid frame strander is mainly composed of fixed pay-off, 6-disc stranders, die holder, double wheel capstan, take-up & traverse rack, transmission system and electrical control system, etc. Rigid frame strander can also add wrapping devices according to customer requirements.

Self supporting rigid rotor design for 1+8+24+30 Bobbins(Assorted Configurations )
Various Bobbin sizes as per DIN standards
High efficiency and speed
Bobbins mounted on heavy duty hardened pintles
Batch Loading ( Side Bottom Loading) for each of the Cages with Automatic Pintle Locking
Automatic Tension Control on the Wires
Line drive by A.C. or D.C. motors with electronic or mechanical synchronization between line components.
Multi Speed Special Gear Boxes for each cage
Line Shaft Transmission Or Independent Drive System with Infinite Lay Setting
Heavy Duty Grooved, Dual Capstans for different configuration
Disk type Pneumatic brake for Each Cage.
Instant Stop on Wire Breakage
HMI /PLC Equipped
Easy Lay Setting
Range of Takeups and Payoffs available
Pre Former and Post Former Heads
Pre Spiralling

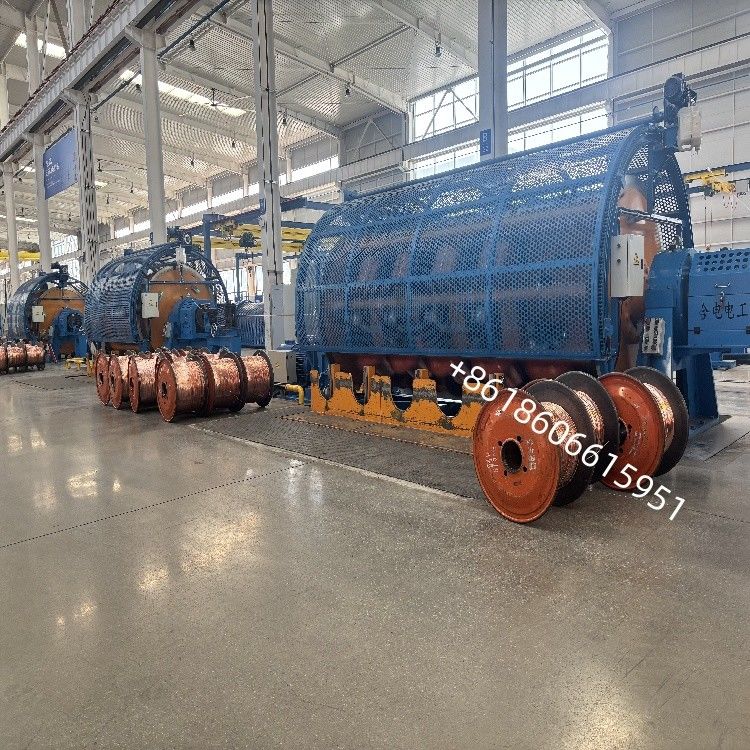

Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander 0

JLK-560					JLK-630
6B	12B	18B	24B	30B	6B	12B	18B	24B	30B
560	560	560	560	560	630	630	630	630	630
1.5-3.6	1.5-3.6	1.5-3.6	1.5-3.6	1.5-3.6	1.5-3.6	1.5-3.6	1.5>3.6	1.5-3.6	1.5-3.6
175-5.0	1.75-5.0	175-5.0	1.75-5.0	175-5.0	1.75-5.0	1 75-50	1 75-50	1.75-50	1.75-5.0
80	80	80	80	80	80	80	80	80	80
45	45	45	45	45	45	45	45	45	45
220-320	190-280	150-215	115-160	90-120	210-300	180-260	140-200	105-150	80-110
280-320	235-280	290-215	140-160	96-115	260-300	220-260	170-200	130-150	90-105
	Depends on cages configuration					Depends on cages configuration
45 KW	55 KW	63 KW	75 KW	75 KW	55 KW	63 KW	75 KW	75 KW	75 KW

Customer Support
1.Lifetime after-sales online consultation service

2.Maintenance, reconstruction and upgrade services of the overall equipment

3.Additional support, such as raw material or accessories supply and suggestions, etc.

Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander 1

Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander 2

Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander 3

Automatically Stop Immediately 630/18+24+30 Rigid Frame Strander 4
