Latest Planetary Stranding Machine And Stander Lines Quality Wire And Cable Making Machine

Name: Latest Planetary Stranding Machine And Stander Lines Quality Wire And Cable Making Machine
Brand: Beyde Trading Co.,Ltd
SKU: 630/12+18+24
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Certification: CE

Model Number: 630/12+18+24

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stander Lines Planetary Stranding Machine, Cable Making Machine Planetary Stranding, Wire Making Planetary Stranding Machine


Usage:	Stranding	Color:	Customized
Application:	Al Wire,Steel Wire Rope,stranding Wire And Cable	Name:	Planetary Stranding Machine
Voltage:	380V/440V	Warranty:	2 Years
Function:	Control Cable,power Cable,signal Cable Communication Cable Forming	Stranding Pitch:	Step-less
Plc:	Siemens	Optional:	Magnetic Hysteresis
Bearing:	NSK/SKF

Usage:	Stranding
Color:	Customized
Application:	Al Wire,Steel Wire Rope,stranding Wire And Cable
Name:	Planetary Stranding Machine
Voltage:	380V/440V
Warranty:	2 Years
Function:	Control Cable,power Cable,signal Cable Communication Cable Forming
Stranding Pitch:	Step-less
Plc:	Siemens
Optional:	Magnetic Hysteresis
Bearing:	NSK/SKF

Product Description

Latest Planetary Stranding Machine and Stander Lines Quality Machines Wire and Cable Making Machine

Usage

The machine is used for stranding Cu, Al wire, ACSR and insulated wires with back-twist. It also can steel-armoring or Cu-screening cables.

Main Character

1. Back-twist: planetary mechanism.
2. The non-axle thimble twisting cage is equipped with mechanism friction tension control.
3. The transmission shafts link all the machine parts together to keep stable stranding pitch, which can also be chosen frequency synchronization to control the machine.
4. The machine is widely used, and manipulated conveniently with low-noise.

Configuration
Pay-off, mainframes of 6-reel, 12-reel, 18-reel, 24-reel and 30-reel, die holder, tape lapper, armor unit, haul-off, take-off, driven system and electrical system.

Specification		400/12+18+24	500/6+12+18	500/12+18+24	630/12+18+24
Dia. of single wire (mm)	copper	1.5-5.0
	aluminium	1.8-5.0
	steel	1.2-3.0
Production dia. (mm)		45		35	45
Stranding cage speed (rpm)		35-88			24-60
Stranding pitch (mm)		53.4-1057			78-1541
Diameter of wheel haul-off (mm)		1800		2000
Production speed (m/min)		4.7-37
Size of take-up reel (mm)		PN2000			PN2500

Technical Specification

Bobbin size(mm)	Max. rotation speed(rpm)						Wire dia.(mm)
	Max. rotation speed(rpm)						Solid conductor(AAC/ACSR)		Finished conductor	Al-clad steel wire	Optical fiber cell
	6B	8B	12B	16B	18B	24B	Aluminum	Copper	Finished conductor	Al-clad steel wire	Optical fiber cell
400	126		112		98	86	1.8-5.0	1.2-5.0	1.2-5.0
500	105		93		82	71	1.8-5.0	1.2-5.0	1.2-5.0
630	85	80	74	70	65	57	1.8-5.0	1.2-5.0	1.2-5.0	1.2-4.5	1.5-5.0

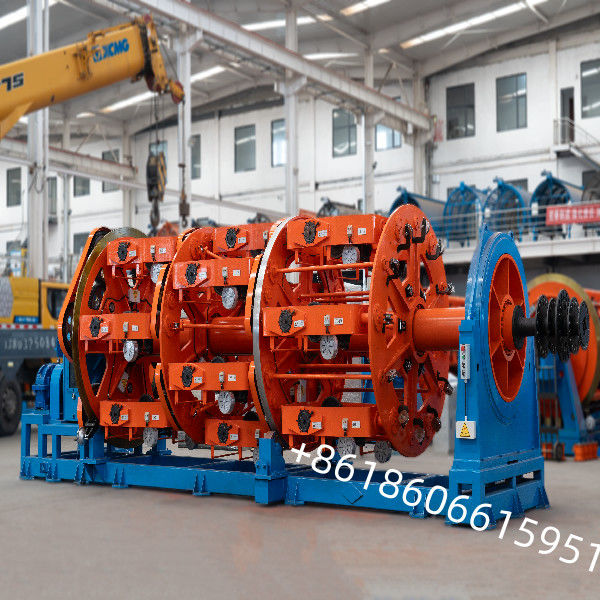

Latest Planetary Stranding Machine And Stander Lines Quality Wire And Cable Making Machine 0

Latest Planetary Stranding Machine And Stander Lines Quality Wire And Cable Making Machine 3

FAQ:

1. Q : How to install and make commissioning for the line?
A : We will dispach our engineers to your factory to guide the installation and commissioning.

2. Q : Can you train our workers to master how to operate and maintain machines?
A : Yes, we can, and will be free of charge to do it.

3. Q :How about your motor and PLC control system?
A : Normally we use Siemens motor and chinese famouse brand motor, Siemens PLC control system and HMI.

4. Q : Can you make design for the whole new plant?
A : Yes, we can, we have a strong team with very rich experence for make design for new project.

5. Q : How about your payment item for the line?
A : 30% down payment and 70% payment before delivery by T/T or LC.

6. Q : How about your service after sale?
A : You can find us 24 hours in one day, and we will deal with your problem no more than 24 hours.
