New Energy Charging Cable Manufacturing Machine Planetary Strander 630/6+800/3

Name: New Energy Charging Cable Manufacturing Machine Planetary Strander 630/6+800/3
Brand: Beyde Trading Co.,Ltd
SKU: 630/6+800/3
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Certification: CE

Model Number: 630/6+800/3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Planetary stranding machine for energy cables, 630/6+800/3 planetary strander, Charging cable manufacturing equipment


Usage:	Stranding,Twisting	Color:	Customized
Application:	Cable Making Industry	Name:	Planetary Stranding Machine
Voltage:	380V/440V	Wire Material:	Conductor Or Insulated Wire
Warranty:	12 Months	Function:	Power Cable
Stranding Pitch:	Step-less	Plc:	Siemens
Bearing:	NSK/SKF

Usage:	Stranding,Twisting
Color:	Customized
Application:	Cable Making Industry
Name:	Planetary Stranding Machine
Voltage:	380V/440V
Wire Material:	Conductor Or Insulated Wire
Warranty:	12 Months
Function:	Power Cable
Stranding Pitch:	Step-less
Plc:	Siemens
Bearing:	NSK/SKF

Product Description

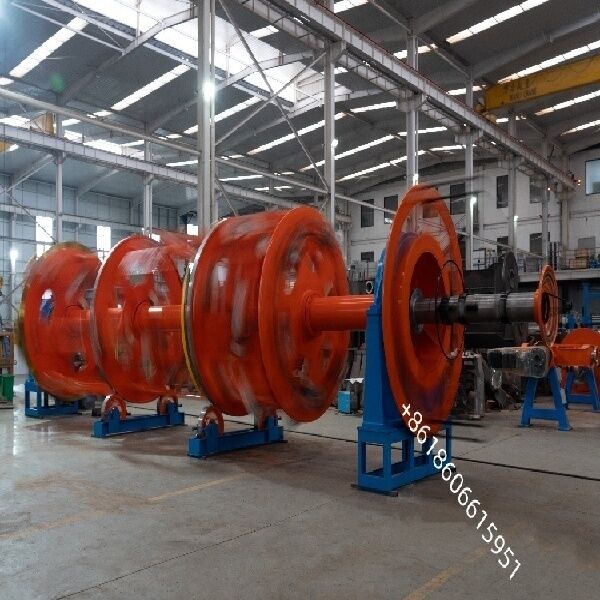

New Energy Charging Cable Manufacturing Machine Planetary Strander 630/6+800/3

630/6: a planetary cage with 6 bobbins on a 630 mm reel flange, typically used as the high‑speed, in‑line stranding stage for compacting and laying up insulated cores or conductors.

+800/3: a second planetary cage with 3 bobbins on an 800 mm reel flange, commonly used for screening (e.g., copper tape) or as a back‑up stranding stage in a two‑stage line.

Typical process and components for EV‑charging cable lines

Pay‑off: central pay‑off (for the master core) + 6×PN630 planetary cage; optional side pay‑offs for cores or screens.

Stranding: 630/6 planetary cage with back‑twist (planetary) for compact, low‑torsion lay‑up; 800/3 planetary cage for copper tape screen or additional lay‑up.

Taping: taping head for copper tape or dielectric tape; typical taping pitch and speed ranges are available on comparable 400–630 class machines (e.g., pitch 14.5–279.4 mm, taping speed up to 500 rpm).

Pre‑twist/back‑twist: planetary mechanism provides full back‑twist; cradles can be locked for zero back‑twist when required by product spec.

Cooling: water cooling trough after stranding/taping for dimensional and property stabilization.

Dielectric extrusion: single‑ or dual‑layer XLPE (or other insulation) with crosshead, capacitance meter, and pre‑heater for EV‑charging cable insulation.

Metering and capstan: meter counter + capstan for haul‑off control.

Take‑up: PN1000–PN1600 take‑up reels with traverse; PLC/touch‑screen control for tension, pitch, and line speed.

Input wire diameter	Ø1.5-Ø5.0mm Conductor Ø3.0-Ø7.0mm Insulation
Max stranding OD	Ø25mm
Max rotation speed	70/ RPM Stepless adjustable
Strand pitch	60 - 600mm Stepless adjustable
Max line speed	27m/min Stepless adjustable
Cage motor power	55KW(AC)
Motor type	undependent motor
Caterpillar motor power	22KW(AC)
Pay-off bobbin size in cage	PND630+800
Capstan wheel diameter	Ø1600mm
Central pay-off size	PN1600
Take-up bobbin size	PN1000-PN2000
Machine center high	1000mm

New Energy Charging Cable Manufacturing Machine Planetary Strander 630/6+800/3 0
