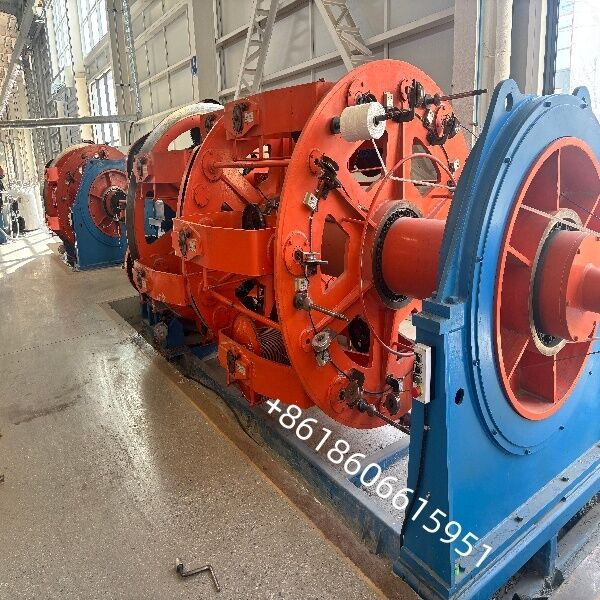

Robust Planetary Strander: Zero Twist Stress for Extra-Large Conductors

Name: Robust Planetary Strander: Zero Twist Stress for Extra-Large Conductors
Brand: Beyde Trading Co.,Ltd
SKU: 630/1+12+18
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Certification: CE

Model Number: 630/1+12+18

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety container packing

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                planetary stranding machine for large conductors, zero twist stress stranding machine, robust planetary strander with warranty


Usage:	Stranding	Color:	Customized
Name:	Planetary Stranding Machine	Voltage:	380V
Stranding Pitch:	Step-less	Plc:	Siemens
Bearing:	NSK/SKF	Single Core Wire Sizes:	2.0 - 10.0 Mm
Copper Wire Size:	1.5 - 5.0 Mm	Max. Tracking Speed:	50 M/Min

Usage:	Stranding
Color:	Customized
Name:	Planetary Stranding Machine
Voltage:	380V
Stranding Pitch:	Step-less
Plc:	Siemens
Bearing:	NSK/SKF
Single Core Wire Sizes:	2.0 - 10.0 Mm
Copper Wire Size:	1.5 - 5.0 Mm
Max. Tracking Speed:	50 M/Min

Product Description

Robust Planetary Strander: Zero Twist Stress for Extra-Large Conductors

JL-630/12+18 Cage Type Cabling Machine for OPGW Cable

1. Application:

This versatile machine is primarily designed for stranding a variety of insulated wires. It can also twist copper and aluminum wires with back-twisting capabilities and is adept at creating steel armoring for power cables.

2. Main Features:

1> 100% Back-Twist Stranding: This advanced machine adopts a fully gear back-twist mechanism, achieving a perfect 100% back-twist stranding.

2> High Stranding Speed: The stranding cages implement gear back-twist technology and feature a center main shaft made from seamless steel tube. Equipped with large bearings on both ends, an iron cast gearbox body, and gears refined through grinding treatment, the design significantly enhances the rigidity of the stranding cages. The transmission system and cage rotation speeds are optimized for high productivity, replacing chain connections with ground shaft and gearbox transmissions to ensure superior performance.

3> Accurate Synchronization of Ground Shaft Transmission: Once the gear ratio of the gearbox is determined, the strict proportional relationship between cage rotation speed and haul-off speed is fixed, ensuring the stranding pitch remains consistent throughout production. This guarantees precise synchronization of each cage and simplifies operation within the electrical control system.

Cage type Stranding Machine Technical Parameter
ITEM		UNIT	JL-400	JL-500	JL-630
Single wire diameter	copper	mm	Ø 1.5 - 5.0	Ø 1.5 - 5.0	Ø 1.5 - 5.0
	aluminum	mm	Ø 1.8 - 5.0	Ø 1.8 - 5.0	Ø 1.8 - 5.0
	Steel	mm	Ø 1.5 - 4.0	Ø 1.8 - 5.0	Ø 2.0 - 6.0
	Insulated wires	mm	Ø 2.0 - 4.0	Ø 2.0 - 8.0	Ø 2.0 - 10
Max. Cage speed	6B	rpm	160	140	105
	12B	rpm	140	120	90
	18B	rpm	125	105	80
	24B	rpm	110	90	70
Laying up pitches	6B	mm	36-640	36-640	40-700
	12B	mm	43-800	43-800	55-950
	18B	mm	53-940	53-940	70-1250
	24B	mm	70-1250	70-1250	/
Tapping speed		rpm	160-357	160-357	160-357
Tapping pitch		mm	12-200	12-200	12-200
Armoring speed		rpm	134-300	134-300	134-300
Armoring pitch		mm	14-240	14-240	14-240
Max lining speed		m/min	50	50	40
Max. Stranding diameter		mm	45	45	45
Take-up bobbins		mm	1250-2000	1600-2500	1600-2500

Robust Planetary Strander: Zero Twist Stress for Extra-Large Conductors 3

Company strength

Located in Hejian, Hebei province, BEYDE Cable Machinery Co., Ltd is recoganized from Hejian Hongqi Machinery Inc. Since established in 1983, we put all our efforts to design, produce, sale and serve for our customer. Our main products including Rigid Stranding machine, Tubular Stranding machine, Planetary Stranding machine, Bow Stranding machine, Laying-up machine, Drum Twister, Armouring machine and so on. Our products are widely used all over the world, and our brand "Hongqi machine" become famous in China.Now we are proudly of well-known brand and becoming the leading team in this field.
