1250/1+4 cable laying-up machine
, planetary cabling machine manufacturer
, laying up machine with warranty

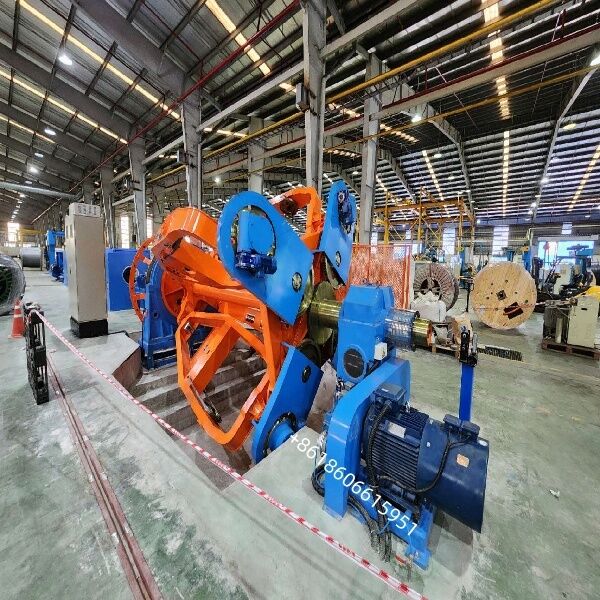

1250/1+4 Cable Laying-up Machine | Planetary Cabling Machine Manufacturer
Overview
The CLY-1250/1+4 Planetary Laying-up Machine is designed for cabling / laying-up of multi-core low and medium voltage power cables, control cables, and mining cables. It is suitable for both round and sector-shaped cores (up to 5 cores). The stranding cage is equipped with a 100% back-twist function, ensuring minimal internal stress in the laid-up cable. The entire line is controlled by a Siemens/Delta PLC + HMI touch screen with inverter-driven motors for precise lay-up pitch and synchronized line speed.
Application
-
Laying-up of LV/MV power cables (PVC, XLPE insulated)
-
Control cable and mining cable assembly (2–5 cores)
-
Suitable for round or pre-spiraled sector-shaped conductors
-
Optional non-metallic taping (polyester / mica tape) and steel wire armoring
Key Features
-
✅ Planetary stranding cage (1 central + 4 side bobbins, PN1250) with full back-twist capability
-
✅ S/Z stranding direction, lay-up pitch stepless adjustable via PLC (300–2500 mm)
-
✅ Dual-support large bearing structure for high-speed, low-vibration operation
-
✅ Electric bobbin clamping / releasing, pre-twist function for sector cores
-
✅ Equipped with non-metallic wrapping head (2-pad, 500–650 rpm) & optional steel armoring
-
✅ Pneumatic caterpillar capstan with length metering & auto-stop on fault
-
✅ Complete safety protections: overload, over-travel, guard door interlock, emergency stop
Overview
The CLY-1250/1+4 Planetary Laying-up Machine is designed for cabling / laying-up of multi-core low and medium voltage power cables, control cables, and mining cables. It is suitable for both round and sector-shaped cores (up to 5 cores). The stranding cage is equipped with a 100% back-twist function, ensuring minimal internal stress in the laid-up cable. The entire line is controlled by a Siemens/Delta PLC + HMI touch screen with inverter-driven motors for precise lay-up pitch and synchronized line speed.
Application
Laying-up of LV/MV power cables (PVC, XLPE insulated)
Control cable and mining cable assembly (2–5 cores)
Suitable for round or pre-spiraled sector-shaped conductors
Optional non-metallic taping (polyester / mica tape) and steel wire armoring
Key Features
✅ Planetary stranding cage (1 central + 4 side bobbins, PN1250) with full back-twist capability
✅ S/Z stranding direction, lay-up pitch stepless adjustable via PLC (300–2500 mm)
✅ Dual-support large bearing structure for high-speed, low-vibration operation
✅ Electric bobbin clamping / releasing, pre-twist function for sector cores
✅ Equipped with non-metallic wrapping head (2-pad, 500–650 rpm) & optional steel armoring
✅ Pneumatic caterpillar capstan with length metering & auto-stop on fault
✅ Complete safety protections: overload, over-travel, guard door interlock, emergency stop
Product Name: Planetary Type Cable Laying-up Machine 1250/1+4 (CLY-1250/1+4)
Overview
The CLY-1250/1+4 Planetary Laying-up Machine is designed for cabling / laying-up of multi-core low and medium voltage power cables, control cables, and mining cables. It is suitable for both round and sector-shaped cores (up to 5 cores). The stranding cage is equipped with a 100% back-twist function, ensuring minimal internal stress in the laid-up cable. The entire line is controlled by a Siemens/Delta PLC + HMI touch screen with inverter-driven motors for precise lay-up pitch and synchronized line speed.
Application
-
Laying-up of LV/MV power cables (PVC, XLPE insulated)
-
Control cable and mining cable assembly (2–5 cores)
-
Suitable for round or pre-spiraled sector-shaped conductors
-
Optional non-metallic taping (polyester / mica tape) and steel wire armoring
Key Features
-
✅ Planetary stranding cage (1 central + 4 side bobbins, PN1250) with full back-twist capability
-
✅ S/Z stranding direction, lay-up pitch stepless adjustable via PLC (300–2500 mm)
-
✅ Dual-support large bearing structure for high-speed, low-vibration operation
-
✅ Electric bobbin clamping / releasing, pre-twist function for sector cores
-
✅ Equipped with non-metallic wrapping head (2-pad, 500–650 rpm) & optional steel armoring
-
✅ Pneumatic caterpillar capstan with length metering & auto-stop on fault
-
✅ Complete safety protections: overload, over-travel, guard door interlock, emergency stop
Main Technical Parameters
|
Item
|
Specification
|
| Model |
CLY-1250/1+4 Planetary Laying-up Machine |
| Bobbin Size in Cage |
PN1250 (1 central + 4 side reels) |
| Input Core Dia. |
Φ6 – Φ30 mm (conductor section 10–300 mm²) |
| Max. Laid-up Cable OD |
≤ Φ80 mm |
| Cage Max. Rotating Speed |
50 r/min |
| Stranding / Lay-up Pitch |
300–2500 mm (stepless adjustable, S/Z) |
| Max. Line Speed |
≈ 50 m/min |
| Non-metallic Taping Head |
2-pad, 500–650 rpm; pitch stepless adjustable |
| Haul-off Device |
Pneumatic caterpillar, Max pull 1600 kg |
| Central Pay-off |
PN800–PN1600 column type |
| Take-up |
Portal type PN2000 / PN2500 |
| Main Drive Motor |
45 kW AC inverter (cage) |
| Taping Motor |
11 kW AC inverter |
| Capstan Motor |
22 kW AC inverter |
| Take-up Motor |
5.5 kW AC inverter |
| Total Installed Power |
≈ 85 kW (3Ph, 380V±10%, 50Hz) |
| Machine Center Height |
1000 mm |
| Direction |
Right to Left (customizable) |
| Overall Dimension (ref.) |
≈ 35,000 × 6,000 × 5,000 mm |
Machine Composition (Standard Supply)
-
PN1250/1+4 Planetary Stranding Cage with back-twist — 1 set
-
Double-row Closing Die Holder — 1 set
-
Φ630×2 Non-metallic Taping Device — 1 set
-
Mechanical + Electronic Length Meter Counter — 1 set
-
1600 kg Pneumatic Caterpillar Capstan — 1 set
-
Φ2500 Portal-type Take-up with Traverse — 1 set
-
Full Electrical Control System (PLC + HMI + Inverter) — 1 set
-
Safety Guardrails & Emergency Stop Device
-
Φ1600 Column Central Pay-off Stand — 1 set
