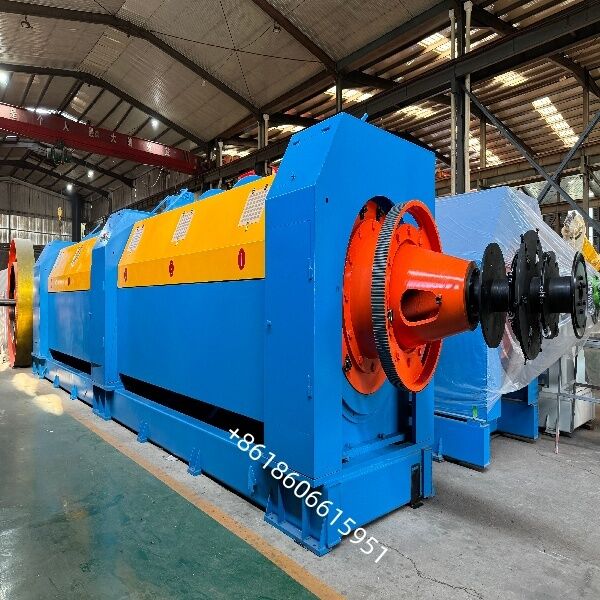

High-Precision Tubular Strander for Superior Cable Quality To South Africa

High-Precision Tubular Strander for Superior Cable Quality To South Africa

**Key Application Areas**

This equipment is primarily used for the stranding and cabling of the following materials:

Metal conductors: Copper wire, aluminum wire, and steel wire.

Cable products: Aluminum Conductor Steel Reinforced (ACSR), Optical Ground Wire (OPGW), control cables, wire ropes, tire cords, etc.

Insulated cores: Capable of cabling and stranding plastic or rubber-insulated cores when equipped with a taping unit.

**Core Structure and Components**

A typical tubular stranding line comprises the following sections:

Pay-off system: Central pay-off stand and cradle-type bobbin carriers located inside the tube.

Main unit (Tube body): A welded cylindrical body supported by large bearings; dynamically balanced for high-speed, low-noise operation.

Auxiliary devices: Doubling die holder, length counter, and lubrication system.

Haul-off and take-up: Capstan, take-up unit, and traverse mechanism.

Control system: Modern models typically utilize PLC + HMI control, enabling features such as stepless lay length adjustment, automatic stop upon wire breakage, and constant tension control.

Optional configurations: Taping device, magnetic powder/hysteresis tension brakes.

**Technical Features and Advantages**

High speed and high productivity: The tubular structure offers excellent rigidity, supporting high rotational speeds (exceeding 1500 rpm for smaller models), resulting in fast line speeds and high production capacity.

Precision and stability: Full bearing support and a large-diameter tube design ensure smooth operation, uniform lay length, and high product quality.

Safety: Equipped with comprehensive wire-break detection, pneumatic braking, and protective enclosure systems.

Operation direction: The right hand machine, that is, facing the device operation, the left pay-off, and the right take-up
Color
Rotating part: orange outside RAL1028
Equipment main body: RAL5015sky blue
Underframe part: RAL9017 outer black
Control cabinet: RAL7032
