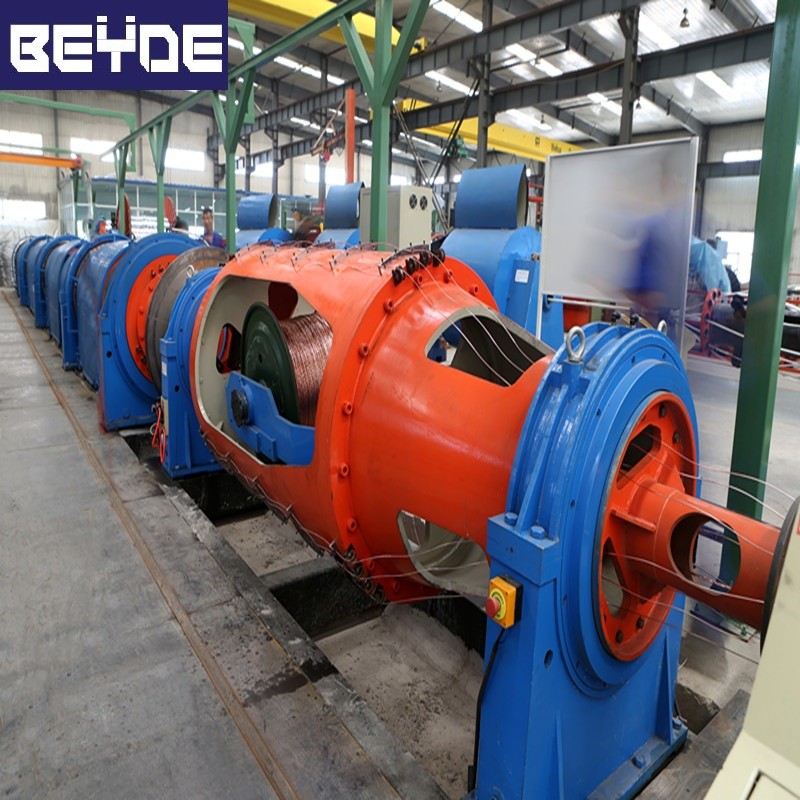

Wire Rope Tubular Stranding Machine PN1250 / PN1600 With Take Up Bobbin

Product Details

Place of Origin: Hejian,China

Brand Name: Beyde

Model Number: 400

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiate

Packaging Details: Container loading with safety packing

Delivery Time: 70-150 Days after receive deposit

Payment Terms: L/C, T/T

Supply Ability: 120 Set/Year

Get Best Price
Product Details
Highlight:

tubular strander

,

electric wire making machine

Bobbin:
Take Up
Take-plate Size:
PN1600
PLC:
Optional
Usage:
Stranding
Bobbin:
Take Up
Take-plate Size:
PN1600
PLC:
Optional
Usage:
Stranding
Product Description

High speed ACSR and wire rope 630 tubular stranding machine with take-up bobbin PN1250/PN1600



Product Description

Application:

The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process.
Component:

Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.
Main Character:
1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.

2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.

3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.

4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.

Main Parameters of JGGB-500

Model JGGA500/1+6 JGGA500/1+12
Single wire diameter copper ø 1.2 ~ ø 3.5 ø 1.5 ~ ø 3.5
conductor ø 1.5 ~ ø 4.0 ø 1.5 ~ ø 4.0
steel ø 1.2 ~ ø 3.0 ø 1.2 ~ ø 3.0
Maximum Stranding diameter (mm) ø 3.0 ~ ø 15 ø 3.0 ~ ø 25
Max Simplified transfer speed (r/min) 600 600
Traction wheel diameter (mm) ø 1250(pairs of engine) ø 1500
Qualifying speed (m/min) 22-166.85 22-166.85
Stranding pitch 41-312 41-312
Rotating speed (r/min) 1500 1500
Hydraulic brake motor power (kw) 0,12 0,12
Reel specifications PND630 PND630
Cage reel PND500 PND500
Take-plate size PN1600 PN1600



Wire Rope Tubular Stranding Machine PN1250 / PN1600 With Take Up Bobbin 0

FAQ

1,Q: What is your main brand for the electrical and mechanical parts?

A: China famous brand

2, Q:could we appoint the parts brand?

A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.

3, Q: could you please arrange the installation and commissioning ?

A: Yes , we could and the buyer pay the charge

4, Q: could you arrange the production education?

A: Yes , we could and the buyer pay the charge

5, Q: could you do the design for the whole plant

A: Yes , we can.

6, Q: could you offer the production process design

A: Yes , we can.

7, Q: what is the difference with other supplier?

A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

8.Q:What's the payment terms?

A:T/T,30% deposit and 70% balance before delivery.

9, Q:How long the guarantee:

A: one year and charge for repair the whole life.
