CE Standard Tubular Stranding Machine 1250 Millimeter Traction Wheel Dia

Product Details

Place of Origin: Hejian,China

Brand Name: Beyde

Model Number: tubular closer

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiate

Packaging Details: Container loading with safety packing

Delivery Time: 70-150 Days after receive deposit

Payment Terms: L/C, T/T

Supply Ability: 120 Set/Year

Get Best Price
Product Details
Highlight:

tubular strander

,

electric wire making machine

Color:
Customized
System:
Transmission System
PLC:
Optional
Usage:
Stranding
Color:
Customized
System:
Transmission System
PLC:
Optional
Usage:
Stranding
Product Description

High Speed Sector Conductor Tubular Stranding Machine for Copper



TUBULAR STRANDING MACHINE

THE EQUIPMENT USAGE:
The machine are mainly used for copper wire,aluminum wire,steel wire rope,steel-cored aluminium wire stranding and insulated wires electrical control system.It can be equipped with a tapping device according to the reques of end user.

THE EQUIPMENT CONFOGURATI0N:
It is installed with stationary pay off stand,stranding body,die holder,double-haul off device,take up stand,transmission system and electrical control system.It can be equipped with a tapping device according to the request of end user.

THE UNIQUE FEATURE:
1.The cylinder body of the machine works as a whole in two stages,making a radial beating slightly ,being supported by the front and rear bearings so that it moves steady,makes a low noise and serves a life long service.
2.The bobbin of the machine is clamped by disc-shaped springs and eleased by a pneumatic device so that its operation is easy and Its safety is reliable.
3.As the machine is equipped with the protective links such as an utomatic stopping device for a wire breakage and an emergency stop device,it's safe and reliable,
4.The machine has adopted an imported programmable controller so as to command and oordinate each electronic active status of the whole machine in unison.



SPECIFICATION:

ItemJ 500/1+6 630/1+6
Single copper wire dia.(mm) 1.3-4.5 1.3-4.5
Single al wire dia.(mm) 1.8-5 1.8-5
Max. Stranded Dia.(mm) 15 15
Pitch range 20-331 36-274
Tube rotate speed(r/min) Large bearing type 600 Large bearing type 500
Supporting wheel 500 Supporting wheel 350
Traction wheel Dia.(mm) 1250 1250
Pay off bobbin inside of strander 500 630
Take-up bobbin size PN800-1600 PN1200-2000

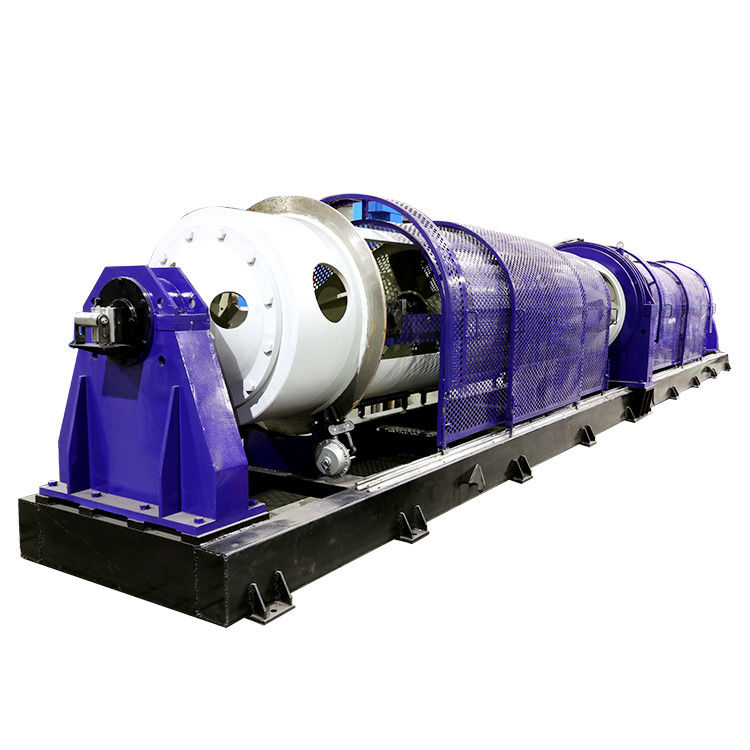

CE Standard Tubular Stranding Machine 1250 Millimeter Traction Wheel Dia 0







4.Advantage:

1). BEYDE is using only helical precision gear.

2). Special lubrication system for the gears and bearings

3). Second-section-annealing system, outside electrically neutral (no current flow to other unit)

4). Machine’s body and other key components and parts are produced by our own factory, quality is reliable.



5.After-sell service:

1)Pre-sale training

2)12 months for the main machine,6 months for the electrical parts
