|Usage:||Extruding,Stranding||Name:||Copper Wire Multi Heads Wire Drawing Machine/Cable Making Device,flexible Flat Cable Stripping Machine,cable Making Machine|
|Voltage:||3phase 380V 50HZ||Warranty:||One Year|
|Color:||Customized,optional,According To Customer Requirement||Capacity:||100-150kg/h|
|Type:||Automatic Soldering Machine,Water Type||Function:||Electric Wire Cable Manufacture|
siemens cable extrusion machine,
sheath wrapping copper wire extrusion machine,
siemens copper wire extrusion machine

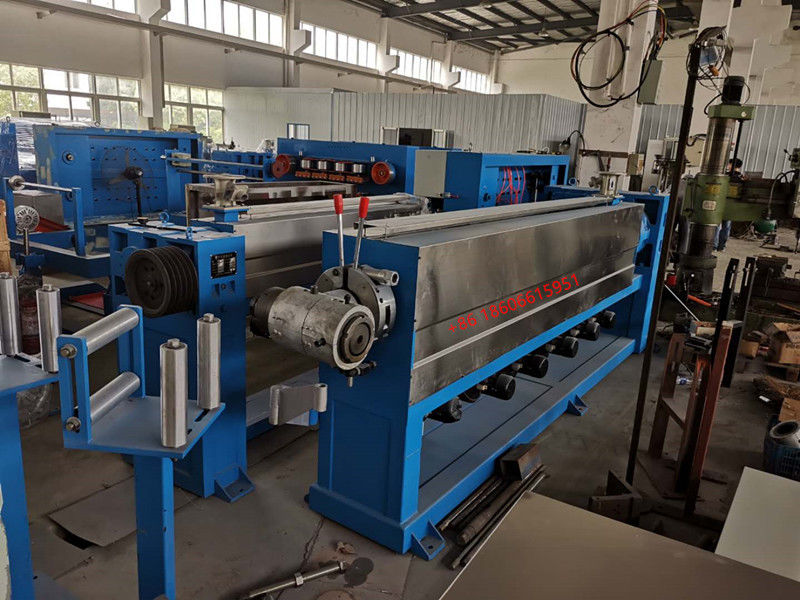

High Speed 90+45 Wire Sheath Wrapping Extrusion Equipment With Siemens
The unit is suitable for sheathing wire and cable by hot extrusion of thermoplastic cable materials such as polyvinyl chloride, polyethylene, PE, XLPE, low-smoke and halogen-free.
3Pay off Form: upper casing type, portal ground rail walking type；
Take-up tension form: manual friction disc (tension adjustable)；
Travel motor: BWED121-23×17-1.5KW (AC motor)
Lifting motor: BLD11-43-1.5KW (2 sets)
Longmen ground rail walking type, upper casing type structure. The gantry is made of bending and welding. The two tops of the reel are driven by two motors via a cycloid reducer to lift the screw nut. Each apex can be lifted separately or simultaneously, and is equipped with mechanical and electrical protection devices. It can be equipped with different specifications of the top sleeve to meet the installation of different specifications of the reel; the reel clamping is realized by the motor cycloid reducer, and the clamping overload protection is provided. The tension of the pay-off is realized by manual friction disc, which is manually adjustable and stable. Reliable and easy to operate. The take-up frame adopts the centering device to realize the centering line.
Five-wheel tensioning straightening device
Adapt wire diameter:φ5-φ50mm
Structure: Built-in friction plate, can manually adjust the friction of the wire.
Wire rollers are provided at both ends of the inlet and outlet.
Screw length to diameter ratio:25:1
Screw type: high-efficiency BM screw, low-smoke and halogen-free special screw.
The amount of glue(MAX):PVC:280kg/h；
Main motor: 75kw DC motor, Continental 590 DC speed control system control.
Screw material: 38CrMoALA, surface nitriding treatment, nitriding depth 0.5-0.8mm, surface hardness ≥ HV840
barrel material: 38CrMoALA, surface nitriding treatment, nitriding depth 0.5-0.8mm, surface hardness ≥ HV1000
Screw cooling: water cooling.
4.Φ70mmRight angle head (with 1 set of die wrenches)
Features: When replacing the core and the mold sleeve, the core rod is not required to be dismantled. After the eccentricity is adjusted at low speed, the concentricity is constant when the speed is increased to the normal production speed. The eccentricity requirement is less than 15%. After the low speed adjustment and the synchronous speed increase Diameter deviation within the standard tolerance of cable products
5. Automatic feeding drying system
6.16 meters stainless steel cooling sink
