Usage: | Extruding,Stranding | Name: | Copper Wire Multi Heads Wire Drawing Machine/Cable Making Device,flexible Flat Cable Stripping Machine,cable Making Machine |
---|---|---|---|
Voltage: | 3phase 380V 50HZ | Warranty: | One Year |
Color: | Customized,optional,According To Customer Requirement | Capacity: | 100-150kg/h |
Type: | Automatic Soldering Machine,Water Type | Function: | Electric Wire Cable Manufacture |
Certification: | CE,ISO9001 &14001 | ||
High Light: | lan pe cable extrusion machine,100kg/h cable extruder machine,200kg/h cable extruder machine |

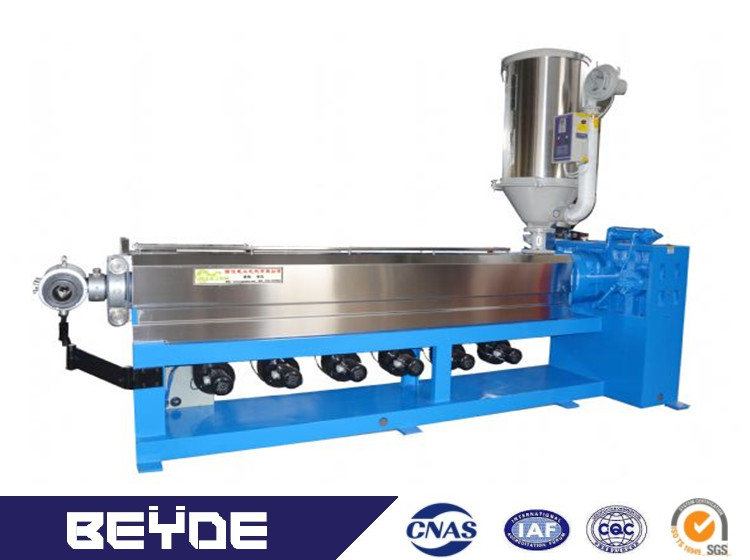

Extrusion Line is used to extrude PVC, PE,PU LAN Cable 100-200 kg/hr
Product Description
Rosendahl has solutions, which is proven to produce PVC / PA insulated cores according to various standards such as THHN, THWN, AWN or MTW. Our Extrusion lines are prepared for continuous operations and speed to 1200 m/min. Rosendahl recommends the classical Tandem configuration to apply the insulation materials.
Specifications:
Model | 20 | 25 | 30 |
Extrusion material | Coaxial cable | Coaxial cable | RGB178 |
Applicable wire size | Φ0.025 | Φ0.03 | Φ0.86 |
Finished outer diameter | Φ0.20 | Φ0.25 | Φ1.08 |
Line speed(meter/minute) | 50 | 80 | 300 |
Dimensions(m) | 10×1.0×2 | 12×1.2×2 | 16×1.5×2.5 |
Consumption of power(kw) | 15 | 20 | 25 |
Consisting Components:
1,motorized pay off
2,straightener platform , preheater
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine
