Product Details
Place of Origin: China
Brand Name: BEYDE
Model Number: 100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 90 Days
Payment Terms: T/T
Supply Ability: 200 Set/Year
Usage: |
Stranding |
Color: |
Customized |
Name: |
Rigid Frame Wire Cable Stranding Machine |
Application: |
Making Cable |
Usage: |
Stranding |
Color: |
Customized |
Name: |
Rigid Frame Wire Cable Stranding Machine |
Application: |
Making Cable |

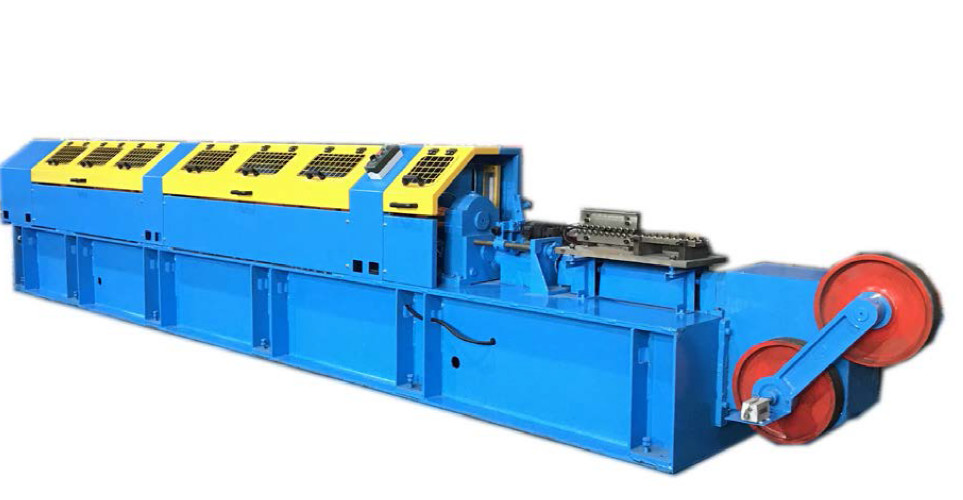

High Speed 100/200 1+6/1+12/1+18 Tubular Stranding Machine For Steel Wire
Tubular Type Stranding Machine
1. Description
Tubular type stranding machine works with 100% back twist movement. This machine is suitable for stranding 7/12/19 round or sector shape cable of copper/aluminum conductors as well as for steel wires stranding.
Rotating axis tube is supported by several big bearings , it is suitable for high rotation speed and no-noise rotation.
The wire tension control is done through band type brakes or with Germany hysteresis brakes (Optionally).
Main rotor of the machine as well as the pulling capstan and the take up unit are independently driven by motor.
The machine is provided with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.
Each bearing is equipped with pump lubricating circulating system to provide high pressure injection type lubricating and cooling.
