Automatic Type Sj70+35 Pe Cable Coating Machine With 1040 Coiling Machine

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 70+35
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 200 set/year
Material: PVC, PE, XLPE,LSZH Wire Range: 0.5-10mm
Warranty: 12 Months Payment: 30% As Deposit By T/T
Delivery: 50 Days Line Speed: 350m/min
Capstan: 500mm Dia Total Power: 68kw
High: 1000mm Direction: S Or Z
High Light:

automatic type cable coating machine

,

pe cable coating machine

,

automatic type cable extrusion machine

Automatic Type SJ70+35 Cable Coating Machin With 1040 Coiling Machine



1. Use: This unit is suitable for covering the sheath of the wires and cables by hot extrusion method for thermoplastic cables such as PVC, PE, XLPE, low smoke and halogen-free.



2.The main technical parameters

2.1 Use regional power 3×380V×50Hz
2.2 Operation direction Right head machine (entered from the left hand direction) to be determined
2.3 Extruder material PVC, PE, low smoke and halogen-free, etc
2.4 Finished out dia. φ0.5mm~φ10mm
2.5 Production line mechanical design line speed 300M/min Max
2.6 Actual line speed Depending on the thickness of the sheath
2.7 Production line height (head center) 1000mm
2.8 Power demand of this production line Each set 68KW
2.9 Machine color Customer requirement

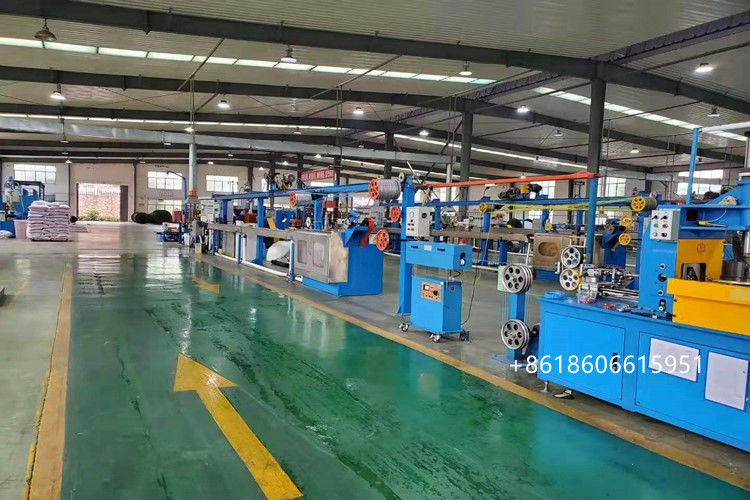

Automatic Type Sj70+35 Pe Cable Coating Machine With 1040 Coiling Machine 0

Automatic Type Sj70+35 Pe Cable Coating Machine With 1040 Coiling Machine 1

Automatic Type Sj70+35 Pe Cable Coating Machine With 1040 Coiling Machine 2

Φ70 Extruder

4.4.1 Screw rod diameter:Φ70mm

4.4.2 Screw rod length and diameter rate: 25:1

4.4.3 Screw rod form:High efficiency BM screw, low smoke

halogen-free screw each one

4.4.4 Screwrod rotation speed:90r/min

4.4.5 Max glue amount:PVC:130kg/h

4.4.6 Main motor power:37kw(AC)motor

4.4.7 Screw rod material: 38CrMoALA, Surface nitriding treatment,

nitriding depth 0.5-0.8mm, Surface hardness≥HV840

4.4.8 Machine barrel material: 38CrMoALA,Surface nitriding treatment,

nitriding depth 0.5-0.8mm, Surface hardness≥HV940

4.4.9 The main motor is 37KW Siemens AC motor, which is controlled

by Siemens frequency control system.

4.4.10 Temperature adjustment and heating4.4.11 The temperature controller adopts intelligent electronic display calculus temperature controller, the temperature can be automatically adjusted between 0-399 ℃, and the temperature control accuracy is high ± 2℃4.4.12 Number of temperature control sections: one section of machine head, one section of machine head lock, four sections of material barrel, cast aluminum heating ring and four DF series axial cooling fans

4.4.13 The fuselage is heated by electricity and cooled by fans.

4.4.14 The machine head adopts Haff type clamping, which is easy to operate.

4.4.15 The gear box is processed with hard tooth surface grinding process. The gears are quenched and tempered with 40Cr, the tooth surface is quenched and tempered with high frequency, and the surface hardness is hrc50-55. The shaft is quenched and tempered with 45# Steel.



Automatic Type Sj70+35 Pe Cable Coating Machine With 1040 Coiling Machine 3

1. Features:

★ It can be supplied by the setting out machine or directly connected to the charging machine production line.

★ After winding, the arm is sent to the film winding machine to automatically pack and label the coil.

★ After automatic coating, it is automatically sent out from the pushing mechanism to the conveyor belt without manual operation.

★ This machine adopts servo motor line arrangement system, and the winding of the winding is beautiful.

★ The panel is operated by screen touch type man-machine interface, which is friendly and easy to operate.

★ Microcomputer memory can store 99 different coil specifications. When you need to change the product specifications, you can read the stored specifications and data, and you can produce them immediately without entering them again.

★ The secondary machine has the function of automatic detection of errors, and when there is a problem, an alarm will be sent to remind the operator.

2. Performance specifications:

★ power supply: AC380V, three-phase, 50Hz, or designated by the customer.

★ air source: compressed air pressure is 5-7kg/cm ³ ★ operation direction: right mobile phone (incoming from left hand), or specified by customer.

★ applicable line type: φ3-φ8mm wire (bv1.5-6) mm ², BVR2.5—10mm ²). ★ design speed of pan head: 900 RPM max( When the production line is 100m/ roll), the line speed is max200m/min when the storage line quantity of horizontal storage line rack is not less than 200m).

★ coil size:

★external diameter Φ 400mmmax x height 40-100mm;

★The inner diameter of the coil is determined by the specification of the pan head, which is: φ 140-200mm (fixed size), one selected by the customer. Dimensions outside the scope shall be specially designed and the feasibility shall be determined by the company.

★ delivery mode of finished products: wire holding type.

★ ruler passing unit: the measuring unit is 0.01M, and the automatic deceleration is predicted and the automatic rolling process is reached.

★ line arrangement device: servo motor is used to line the line, which is synchronized with the main engine of the shaking disc.

★ electrical circuit control of the whole machine: Siemens programmable control (PLC) is adopted.

★ the operation panel adopts the platform man-machine interface.

★ instruments and switches on the operation panel: touch screen, speed control button and emergency switch.

★The speed can be adjusted on the touch screen or on the speed adjusting button.

★ the PLC of this machine has power frequency spark machine contact: it is used for spark detection of BV line, and it can be stopped or continued to be turned after the automatic spark breakdown point.

★ the PLC of the machine has the contact point of caliper: if the diameter is not up to standard, the waste line can be automatically eliminated or the manual marking can be continued to form a circle function

3. Mechanical composition of the oiling reel:

★meter recording part ------------------- group 1

★ feeding part ------ ----------------------group 1

★ door cutter ------------------------------group 1

★ pan head and winding disk ------ -----group I

★ line arrangement mechanism ------ --group I

★ wire holding mechanism ------ -------group I



4. details of mechanical composition:

★ rice recording part: one meter wheel at the top and bottom, and the length of the line can be calculated by using the encoder, and it can be measured to the public score. Meter wheel is made of aluminum alloy, and the upper wheel is sprayed with ceramic hardening treatment, and the next wheel is covered with excellent force glue. The wire shall not be damaged and one-way bearing shall be installed to prevent cable from pulling backward.

★ pan head: horizontal winding is automatically opened and closed by air pressure propeller. When the long winding of the set line is completed, the winding will stop automatically. The pan head will be retracted vertically and raised vertically, and the wire head will not stick to the coil, and it is easy to demould.

★ line arrangement system: the system is completely controlled by computer, driven by servo motor, driven by ball guide screw, and received the signal of main horse transportation and rotation by precision decoder, so that the servo motor and main motor can run synchronously, the line arrangement action is more coordinated and winding is more beautiful.

★ cutter: door cutter, when the set line is wound, it will automatically tangent. The double cutter is made of special steel sdk-11 and is vacuum heat treated, which makes the hardness higher and longer.

★ arm holding transfer mechanism: after the winding of the cable is completed, the wire holding mechanism will hold the coil tightly, and automatically transfer it to the wrapping device for winding and packaging, so as to realize the automatic completion of the winding, label and coating process. When there is any waste line, it can be manually intervened to remove the waste line directly, and the machine can be packaged in circles.

★ control panel: the man-machine interface control system is more convenient to operate by direct touch of screen.

★The central computer control system can control the winding speed, winding length, warning system, line speed adjustment, indicator light, emergency stop and reset. Under the condition of operation, the data such as line length, line diameter and line speed can be changed to avoid inconvenience of stop adjustment. It can also be used for cutting line speed and length of sword on screen and operation of the whole machine.

★ drive motor: winding system: 7.5HP x 4P AC motor + vector control inverter.

★Line arrangement system: 400W servo motor + servo driver

★Wire holding transfer: 400W motor + driver



5. performance of the coating machine in detail:

★ mass of the packed coil: 35kg maximum.

★ pvc/pe/pp adhesive film size: thickness 0.05mm-0.07mm x width 40mm-50mm.

★ loading mode of rubber film coil: pneumatic clamping.

★ pvc/pe adhesive film is used to wrap the package in a high speed manner.

★ adopt the arm type of holding wire, driven by AC motor, and the rotating winding line is smooth and smooth.

★ adjust the size of the arm of the wire holding, and use the manual adjustment method, which is quick and convenient.

6. coating mechanical composition:



★ C-ring:

C-ring is driven by time gauge belt and plastic steel gear, and C-ring is not slippery and the packing is stable and noise is small; The C-ring is made of special steel, the inner and outer rollers supporting the C-ring are covered with excellent force glue. The C-ring is not easy to wear, and the operation keeps the true circle for a long life, and the overload protection is added, and the motor is not easy to burn.

★ cutter:

The air pressure cutter system is adopted. After the length of the packing material is taken out, it will be cut off automatically. The cutter body can be serrated or scissors (selected / replaced according to different packaging materials) with sharp cutting surface, and the cutting strip can be cut PVC, PP, PE adhesive film and other packaging materials.

★ claw:

After the package is sent to the fixed point, it will automatically clamp and pull the belt automatically. After winding for 2 turns, the claw will automatically retreat. When the number of winding to the set number of initial rings (1-2 turns), the clamping claw will automatically put the belt, without any manual action, and it is safe.

★ belt feeding device:

Pneumatic belt feeding device, lock free screw, fast belt change, more convenient to install.

★ automatic label sending mechanism:

The whole stack label discharge type is adopted. Each package is in a line of volume, and it can automatically draw a label and send it into the package. It is not necessary to manually, convenient and safe, and save time and improve the output.

★: drive motor:

C-ring: 1HP x4p AC motor( Rotating packaging)

Wire arm: 1HP x4pac motor +1/20 reducer.

After the coating is completed, the coil will be pushed into the chute and into the collection box automatically.
