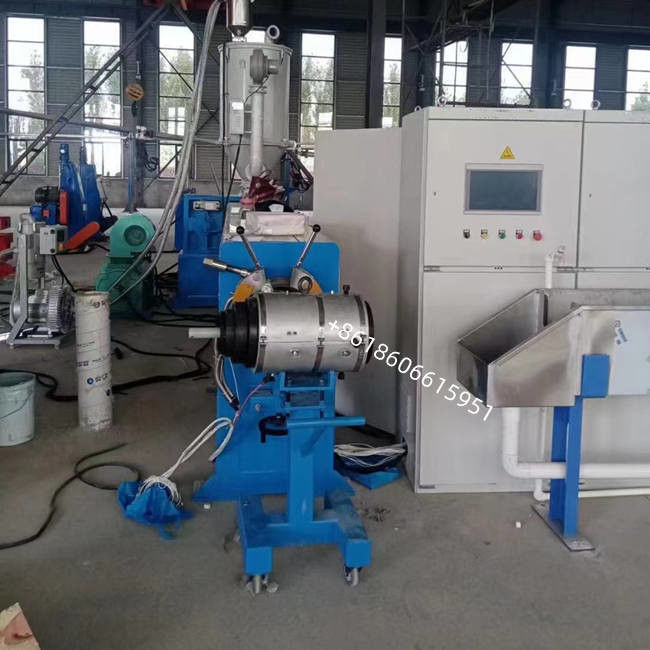

Pvc PFA Cable Extrusion Equipment Movable Cooling Water Trough Energy Saving

Name: Pvc PFA Cable Extrusion Equipment Movable Cooling Water Trough Energy Saving
Brand: Beyde
SKU: SJ180
Rating: 4.5 (115 reviews)

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: SJ180

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: container

Delivery Time: 90 days

Payment Terms: L/C, D/P, T/T, D/A

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                pfa cable extrusion equipment, energy saving cable extrusion equipment, energy saving pfa wire extruder


Usage:	Extruding	Voltage:	380V 50
Application:	Wire Processing	Color:	According To Customer Requirement
Name:	Outer Cable Extrusion Machine	Line Speed:	150-180m/min
Speed:	Max.180m/min	Product Name:	Cable Extrusion Machine
Warranty:	1 Year	Extruding Material:	PFA,PVDF,ETFE,PEP,LSZH

Usage:	Extruding
Voltage:	380V 50
Application:	Wire Processing
Color:	According To Customer Requirement
Name:	Outer Cable Extrusion Machine
Line Speed:	150-180m/min
Speed:	Max.180m/min
Product Name:	Cable Extrusion Machine
Warranty:	1 Year
Extruding Material:	PFA,PVDF,ETFE,PEP,LSZH

Product Description

PVC Extrusion Line - Cable Extrusion Equipment Movable Cooling Water Trough Energy Saving

Description
Used for PVC, PE, XLPE, LSHF insulation and sheathing extrusion of power cables, wires, telephone lines.
It can be equipped with auxiliary machines such as on-line aluminum strip longitudinal taping machine, asphalt coating device, graphite coating device, double pay off and take up stands, etc.
Adopt MMI+PLC control, outer diameter feedback, process parameters can be modified, storage, transfer, convenient and convenient for operation.
Different take-up devices can be configured as required.
Optional: automatic feeding machine, granule dryer, metering color mother machine, diameter gauge, inkjet machine (laser, ink) and stamping machine

1. Application
Single-screw Plastic Extruder can molding PVC, PE, XLPE to cover wires and cables, and difform goods.

2. Technical specification:

Model	70X25D	75X25D	80X25D	90X25D	100X25D	120X25D	150X25D	180X25D	200X25D
Take up and pay off type	End-shaft gantry moving type
Pay off reel	1250mm	2000mm	2000mm	2500mm	2500mm	2500mm	3150mm	3150mm	4150mm
Tention traction	500kg	500kg	500kg	800kg	800kg	800kg	3200kg	3200kg	3200kg
Screw diameter	70mm	75mm	80mm	90mm	100mm	120mm	150mm	180mm	200mm
Screw L/D ratio	25:1Bm	25:1Bm	25:1Bm	25:1Bm	25:1Bm	25:1Bm	25:1Bm	25:1Bm	25:1Bm
Extrusion output	300kg/hr	300kg/hr	350kg/hr	450kg/hr	550kg/hr	800kg/hr	1200kg/hr	1300kg/hr	1600kg/hr
Main motor power	45KW	55KW	90KW	110KW	132KW	132KW	250KW	250KW	315KW
Finished dia.	5-25mm	5-30mm	16-35mm	16-50mm	20-80mm	30-80mm	50-140mm	30-140mm	35-200mm
Tractor type	caterpillar
Traction force	800KG	1250KG	1250KG	1250KG	1600KG	2000KG	3200KG	3200KG	3200KG
Cooling device	Single layer U type water trough
Length of water trough	20m(before 4m after 16m)	22m(before 4m after 18m)	22m(before 4m after 18m)	22m(before 4m after 18m)	22m(before 4m after 18m)	24m(before 4m after 20m)	32m(before 4m after 28m)	32m(before 4m after 28m)	32m(before 4m after 28m)
Size of water trough	250x230x2	250x230x2	250x230x2	250x230x2	280x230x2	280x230x2	380x400x2.5	380x400x2.5	400x360x2.5
Take up reel	1250	2000	2000	2500	2500	2500	3150	3150	4150
Traction speed	2.3-100m/min	2.3-100m/min	2.3-100m/min	2.3-100m/min	2.3-100m/min	2.3-100m/min	5-100m/min	5-100m/min	0-100m/min
