65+35 Physical Foaming Cable Extrusion Machine High Speed Ac Motor

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 65+35
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Extruding Voltage: 380V 50
Application: Conductor Chemical Foam-skin Double Layers Insulation Extrusion Color: According To Customer Requirement
Name: Electrical Wire And Cable Making Machine,Cable Making Equipment Air Pressure: 3-7kgcm 2
Power: 22KW AC Motor + Inverter Speed: 300M/Min
Product Name: Cable Extrusion Machine Warranty: 1 Year
Extruding Material: PVDF,ETFE,PEP,LSZH
High Light:

physical foaming cable extrusion machine

,

ac motor cable extrusion machine

,

physical foaming cable extrusion equipment

High Speed 65+35 Physical Foaming Cable Extrusion Line Cable Coating Line Machine



1. Application:

This extruder line is mainly used for production of HDMI cables, Coaxial cables, DATA cables, Transmission cables etc.
2. Material: FM-PE, PE
3. Foaming degree: High pressure nitrogen injection system: 82%
Low pressure nitrogen injection system: 75%
4. Quality control: out diameter test and capacitance detector available.



5. Main Technical Parameter of Foaming Extruder Line
Physical Foaming Extruder Line Technical Parameter
Model HL-45+30 HL-65+35 HL-90+35
Pay-off bobbins Ø 400-500 mm Ø 500-630 mm Ø 800 - 1000 mm
Pay-off type Passive pay-off or active pay-off
Conductor diameter Ø 0.4 - 1.0 mm Ø 0.8 - 2.0 mm Ø 1.0 - 5.0 mm
Cable diameter Ø 1.5 - 5.0 mm Ø 3.0 - 14 mm Ø 5.0 - 40 mm
Main screw diameter Ø 45 mm Ø 65 mm Ø 90 mm
Screw L/D 34:1 36:1
Extruding capacity 30 kg/h 60 kg/h 150 kg/h
Main motor power 15 HP 30 HP 45 HP
Cooling tank length 25 m 35 m 45 m
Production speed 10-180 m/min 10 -150 m/min 10 - 100 m/min
Take-up bobbins Ø 500 - 630 Ø 630 - 800 Ø 800 - 1000
Control system PLC+ Touch screen





A) apply for drawing and extrude BV building wire,LAN cable and local cable.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.



B) Device structure:drawing machine,annealing machine,extruder,take up machine,tester and other equipments.

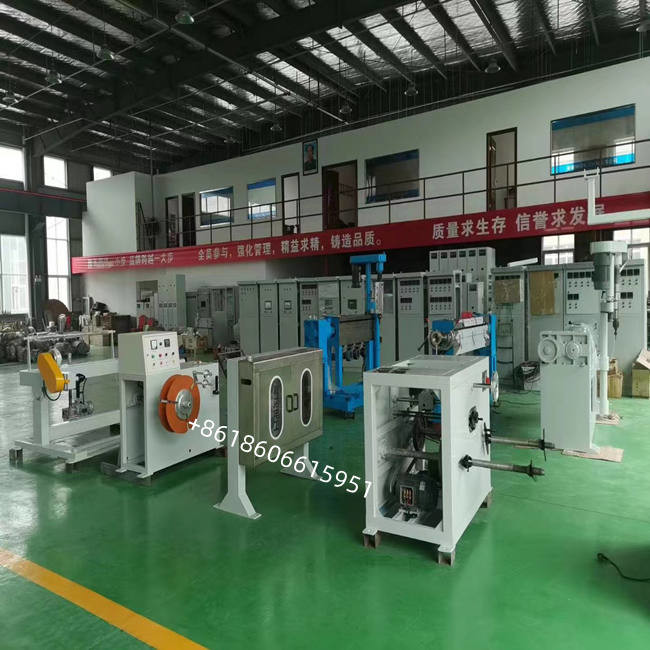

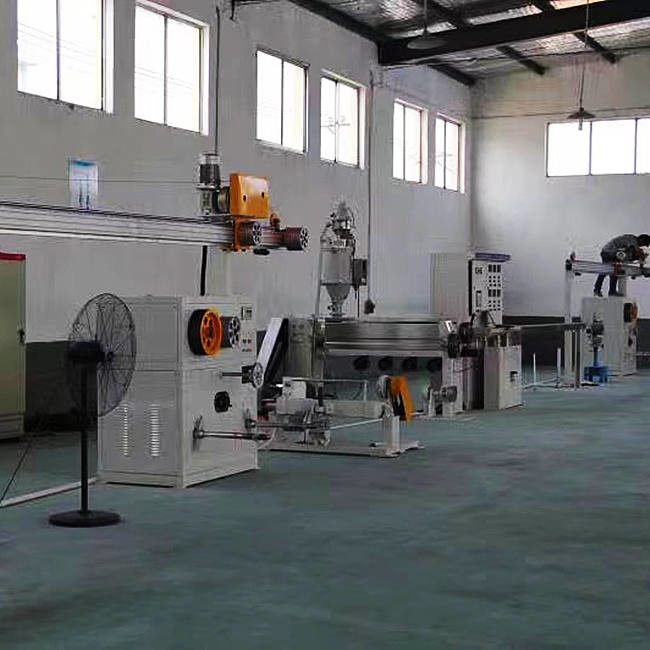

65+35 Physical Foaming Cable Extrusion Machine High Speed Ac Motor 065+35 Physical Foaming Cable Extrusion Machine High Speed Ac Motor 1
