Copper ACSR Cable Bunching Machine Stable Performance

Basic Information
Place of Origin: China
Brand Name: Beyde
Model Number: 500/1+6
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Stranding,Twisting Color: According To Customer Requirement
Name: Tubular Stranding Machine,Copper Aluminum Steel Wire Tubular Stranding Machine Application: Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Wire Material: Steel,Copper Function: Stranding Wires
Taping Head Pitch: 400 Smallest Take-up Bobbin: PN800
Machine Central Height: 700mm Central Pay-off Bobbin: PN400-PN630
Power: 220/380 Take-up Bobbin Size: PND800-PND1600
Plc: Siemens Maximum Bare Wire Diameter: 4mm
Warranty: 12 Months
High Light:

copper cable bunching machine

,

stable performance cable bunching machine

,

acsr cable tubular strander

Stable Performance Copper Wire Stranding Machine Easy To Operate



Planetary Type Copper Wire, Aluminum Wire, ACSR Wire Tubular Stranding Machine



1. Application for Planetary Type Copper Wire, Aluminum Wire, ACSR Wire Tubular Stranding Machine :
The machine is suitable for copper wire, aluminum wire, ACSR stranding, also can be used in insulated cores stranded and small and medium-sized wires refractory wrapped.
2. Technical parameter for Planetary Type Copper Wire, Aluminum Wire, ACSR Wire Tubular Stranding Machine :

No. Parameter name Unit JGG400/6+1 Type JGG500/6+1 Type JGG630/6+1 Type
1 Wire-core diameter mm Copper 1-4
Aluminium 1.5-5
Copper 1.4-4
Aluminium 1.5-5
Copper 1.5-4
Aluminium 1.8-5
2 Max Wiring diameter mm 20 25 30
3 Cage speed r/min 900 800 700
4 Wiring pitch mm 20-285 22-329 24-365
5 Wire speed m/min 18-256.5 17.6-263.2 16.8-138.4
6 Pay-off bobbin mm PN400 PN500 PN630
7 Take-up bobbin mm PN800-PN1600 PN800-PN1600 PN800-PN1600
8 Taping head speed r/min 128-2380
(No stage)
300-2155
(No stage)
250-2000
(No stage)
9 Taping pitch mm 7-2004 8-877 8-1022
10 Central height mm 700 700

700

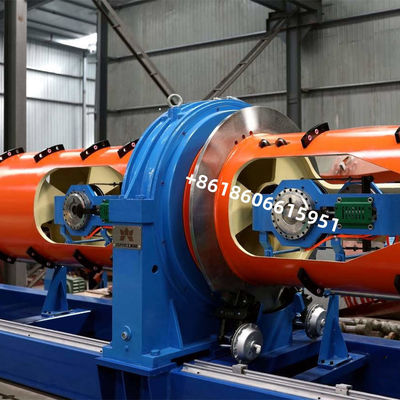

Copper ACSR Cable Bunching Machine Stable Performance 0Copper ACSR Cable Bunching Machine Stable Performance 1Copper ACSR Cable Bunching Machine Stable Performance 2Copper ACSR Cable Bunching Machine Stable Performance 3Copper ACSR Cable Bunching Machine Stable Performance 4

Bobbin PND500
Wire passing form Inner tube
Max rotation speed of the tube 600 rpm
Material of the tube Special steel
Remove stress After annealing treatment, the whole stranding body is more non-deforming and will enable a much longer service life.
Dynamic balance Whole body dynamic balance, smoothly and low noise.
3 bearings Both ends and the middle stand by bearing, and the big bearing in the middle is forced lubrication, which reduces wear and prolongs life.
The cages in the tube End shaft type, pneumatic wrench controls clamping or loosening bobbin.
Pay off tension Friction belt controls the tension of wire and it is very simple.
Brake device of the tube body Pneumatic brake.
The base of the machine The base is welded by large I-beam and machined the top surface and the bottom surface by large planer. The whole tube body is installed on the base. The machine is easy to be installed.
Guide wheel of the wire They are made by bearing steel, which is very wearable
