Sj90+35 Cable Extrusion Machine Double Shaft For Photovoltaic Cables

Basic Information
Place of Origin: China
Brand Name: Beyde
Certification: ISO9000,CE,ROHS
Model Number: 90/25
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: Extruding,copper Wire Extruding Voltage: 380V 50
Application: Conductor Chemical Foam-skin Double Layers Insulation Extrusion Color: According To Customer Requirement
Name: Electrical Wire And Cable Making Machine Power: 22KW AC Motor + Inverter
Dimension: 320*230*300mm Speed: 300M/Min
Extrusion Capacity: 180KG/H Product Name: Cable Extrusion Machine
Warranty: 1 Year Extruding Material: PFA,PVDF,ETFE,PEP,LSZH
High Light:

photovoltaic cable extrusion machine

,

double shaft cable extrusion machine

,

photovoltaic cable extruder machine

SJ90+35 Double Shaft Cable Extruder Machine For Photovoltaic Cables





1. Application:


It is for insulating, coating, stripping single or two layer wire and cable with extruding PVC, XLPE and LDPE compound material. Also it is suit for making power cable, building wire, communication cable, and so on.





2. Consisting Components


1. Double head /magnetic powder tension Pay off stand
2. Dancer
3.70 mm Main extruder
4. Automated loader & dryer
5. Color dozer
6. Auto centering Crosshead
7. Single layer Moving trough
8. Main cooling trough
9. Water wiper
10. Diameter controller
11. Online Mark printer
12. Accumulator
13. Capstan
14. Spark tester
15. Meter counter
16. Dual bobbin type Take up
17. Master control possible Control box





3. Main Parts Brand



Motor: available to Dongguan Motor , Teco, ABB, Siemens

Inverter : available toJapan Yaskawa, Siemens, Taiwan Teco ,America Emerson

Temperature Control Meter: Japan RKC,Omron

PLC : German Siemens , Japan Misubishi

Auxiliary Relay: Japan Omron ;

Ammeter and Voltmeter: Taiwan Risesun

Indicator, Switch and Button : Taiwan TEND

Contactor: Taiwan Shihlin

Line Speed Meter: Taiwan FOTEK/Yangming

Bearing : NSK, SKF


4. Technical Parameter



Machine type 35 50 60 70 80 90 100 120
Pay off mode Pay off

Jananese

Type

Jananese

Type

Jananese type Jananese type Jananese type

None spindle

Pay off

None spindle

Pay off

Pay off bobbin Φ300-Φ400 Φ400- Φ630 Φ 400- Φ630 Φ400- Φ630 Φ500- Φ630 Φ500- Φ800 Φ800- Φ1000 Φ800-Φ1250
Screw dia. Φ 35 Φ 50 Φ60 Φ70 Φ80 Φ 90 Φ100 Φ 120
Screw length-dia. Ratio 1/26 1/26 1/26 1/26 1/26 1/26 1/26 1/26
Temperature control 6 6 6 7 7 7 8 10
Extrusion capacity 50kg/h 90kg/h 120kg/h 150kg/h 180kg/h 250kg/h 300kg/h 400kg/h
Main unit power 10HP 15HP 25HP 30HP 40HP 50HP 75HP 100HP
Fan section 2 3 3 4 4 5 6 7
Wire storage lenght 250m 250m 250m 250m 250m 250m 300m 300m
Capstan motor 3HP 3HP 5HP 5HP 7.5HP 7.5HP 10HP 10HP
Take up motor 3HP 3HP 5HP 5HP 7.5HP 7.5HP 7.5HP 10HP/15HP
Take up mode Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up

Double

Bobbiion tke up

Take up speed 600m/min Max. 500m/min Max. 500m/min 500m/min 400m/min 400m/min 250m/min 200m/min



Our teams can easily assess your specific requirements and provide you with the best engineered solution. Our long experience in the field gave us the capability to be flexibleand versatile as our machines. Your productivity is our priority and our machine can ensure you the most suitable cost effective solution directly tailored on your needs.

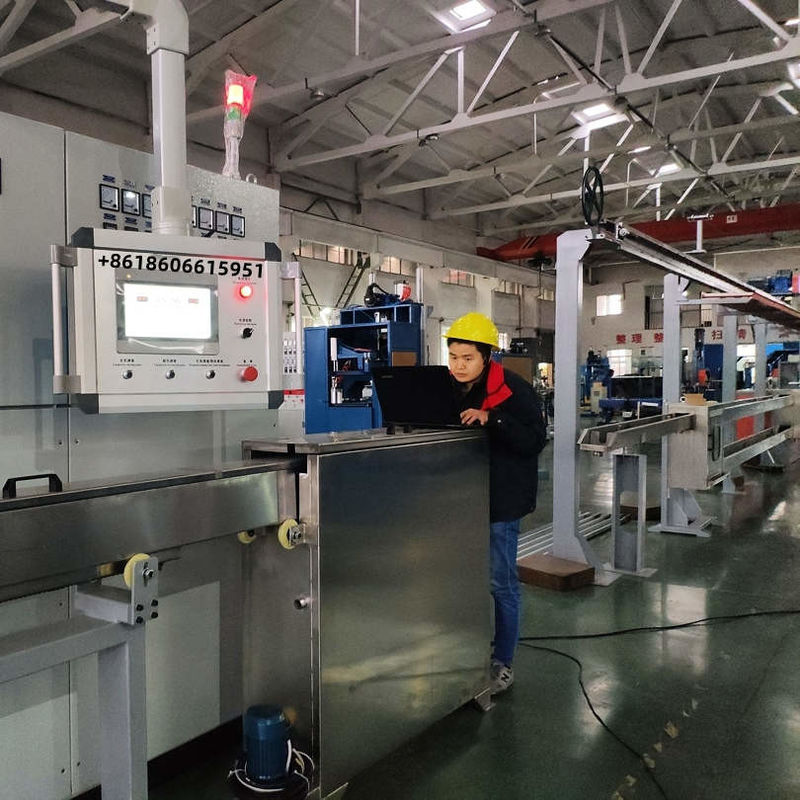

Sj90+35 Cable Extrusion Machine Double Shaft For Photovoltaic Cables 0Sj90+35 Cable Extrusion Machine Double Shaft For Photovoltaic Cables 1

Sj90+35 Cable Extrusion Machine Double Shaft For Photovoltaic Cables 2Sj90+35 Cable Extrusion Machine Double Shaft For Photovoltaic Cables 3
