1+6x630 Conductor Tubular Stranding Machine 700m/Min

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 630/1+6
Minimum Order Quantity: 1 Set
Packaging Details: Container loading with safety packing
Delivery Time: 90 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: Customized Warranty:: 12 Months
PLC: Siemens Usage: Twisting
Name: Tubular Closer Application: Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Smallest Take-up Bobbin: PN800,PN1000 Take-up Bobbin Size: PND800-PND1600,PN-1200-2000
Model: JGG-630/1+6 Bearing: SKF
Input Wire: 1 To 5.0mm
High Light:

conductor tubular stranding machine


700m/min tubular stranding machine


conductor tubular strander

1+6x630 Tubular Strander Machine Conductor Stranding Machine 700m/Min


1. Equipment intended use:
Tubular stranding machine is intended for production of compacted and non-compacted strands of various constructions from zinc-coated wire and wire without coating.
2.Tubular stranding machine 6х400, consisting of:
Pay-off unit
Rotor 6х400
Stranding unit
Straightening unit (post forming unit)
Haul-off unit (haul-off pulleys)
Take-up unit
Electrical equipment and control system
3. Incoming Material Characteristics:
Zinc-coated wire or wire without zinc coating with characteristics as per Table-1 below are used as incoming material.

4. Main Specification


Reel size Max. rotation speed (rpm) Wire dia.
6B 12B 18B 24B AL(mm) CU(mm) Steel(mm)
200(mm) 1200 900     1.0~2.5 0.2~1.5 0.2~0.8
315(mm) 900 800     1.0~2.5 0.5~1.8 0.3~1.0
400(mm) 900 800 550   1.0~2.5 1.4~4.0 0.6~3.0
500(mm) 800 600 450 350 1.3~5.0 1.8~5.0 1.3~3.5
560(mm) 700 500 400 300 1.3~5.0 1.8~5.0 1.3~3.5
630(mm) 700 500 330 260 1.3~5.0 2.0~6.0 1.3~3.5
710(mm) 400 300     1.3~5.0 2.0~6.0 1.3~3.5
760(mm) 350       1.3~5.0 2.0~6.0 1.3~3.5

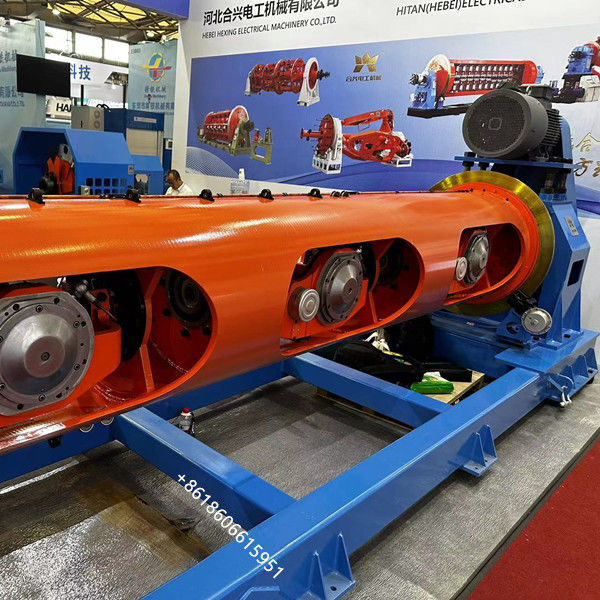

1+6x630 Conductor Tubular Stranding Machine 700m/Min 01+6x630 Conductor Tubular Stranding Machine 700m/Min 1
1+6x630 Conductor Tubular Stranding Machine 700m/Min 2
1+6x630 Conductor Tubular Stranding Machine 700m/Min 3

Spool accommodation;
without center shafts when loading the full spool, spool bearings are closed and interlocked automatically by spring force Pneumatically unlocked.
Spool brake system;
to ensure almost a constant wire tension by brake disk and brake chain.
Loading system:
Spools are loaded and unloaded by jib crane with traverse, which is within the scope of supply. Cradles are fitted with 3 windows on the tube circumference for loading the spools.
Spool cradle monitoring system:
Optical monitoring system (light barrier and reflector) fitted at each spool cradle
Used to disconnect the machine in case the inclination of spool cradle position exceeds 30 degrees.
Special tube-enclosing antifriction bearings with central lubrication Temperature is monitored at each bearing point and indicated on the operator panel The bearing stands are electrically monitored for vibrations. The machine will be switched off if the limit is reached.
Bearing: From Germany, Switzerland
Disc brake:
Pneumatically actuated Time for machine stoppage;
The machine is stopped within approx. max. 12 seconds in the event of:
Reaching the pre-selected number of meters
Wire breakage or passing of wire end
Cradle inclination exceeding 30 degrees
Failure of compressed-air
Failure of centralized lubrication of rotor bearings
Excessively high rotor bearing temperature
Excessively high motor temperature
Pressing the OFF-button
The machine is stopped within max. 10 seconds in the event of: Pressing the emergency button.
AC Motor with frequency controlled, infinitely variable speed, Tooted belt drive from motor to rotor. Motor Brand: Siemens, ABB, OEMER
Safety cover (guards)
Opening of the cover and front wall pneumatically; the operator can stand directly at the tube (rotor) during loading and set-up operation.
Walls and covers are planked with metal sheets and sound deadened material.
The machine cannot be started with an opened safety guard
The stranding tube can low rotating (approx. 50 rpm) with open safety guard in case of loading process
In the safety guard along the tube a wire breakage contacts are located
To facilitate viewing into the machine an inclined (about 45 deg.) front wall with window has been provided in the guard.
Utilities parameters :
Electric energy: 380 V ± 5%; 50 Hz, 3 phase with a dead-earthed neutral.
Connected load: approximately 270 kVA
Compressed air pressure in the Buyer’s workshop network: not more than 5 bar
Equipment units color :
Machine’s body: Green RAL 6011
Safety Gates : Yellow RAL 1003
Moving parts: Orange RAL 2002
Parapets, Banisters, Windows area on tubes: Black RAL 9004
Metal constructions of loading device in accordance with the colour of machine’s body Green RAL 6011
