| Place of Origin: | China |
|---|---|
| Brand Name: | Beyde |
| Model Number: | 630/1+8 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | container |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 set/year |
| Model: | JC-630/8 | Product Name: | Tubular Stranding Machine |
|---|---|---|---|
| Stranding Direction: | Left Or Right Hand | Wire Type: | Aluminum Or Copper And Steel Wire |
| Capstan Diameter: | 1400mm | Capstan Speed: | 160m/min |
| Drum Diameter: | PND630 | Drum Width: | 475mm |
| Stranding Pitch: | Stepless-adjust | Stranding Speed: | 600r/min |
| Wire Diameter: | 1 - 5.0mm | Max Stranding Dia,: | 15mm |
| Wire Tension: | Mechanic Or Pneumatic | PLC: | Siemens |
| High Light: | safety tubular strander,wire rope industry tubular strander,wire rope industry tubular stranding machine |
||

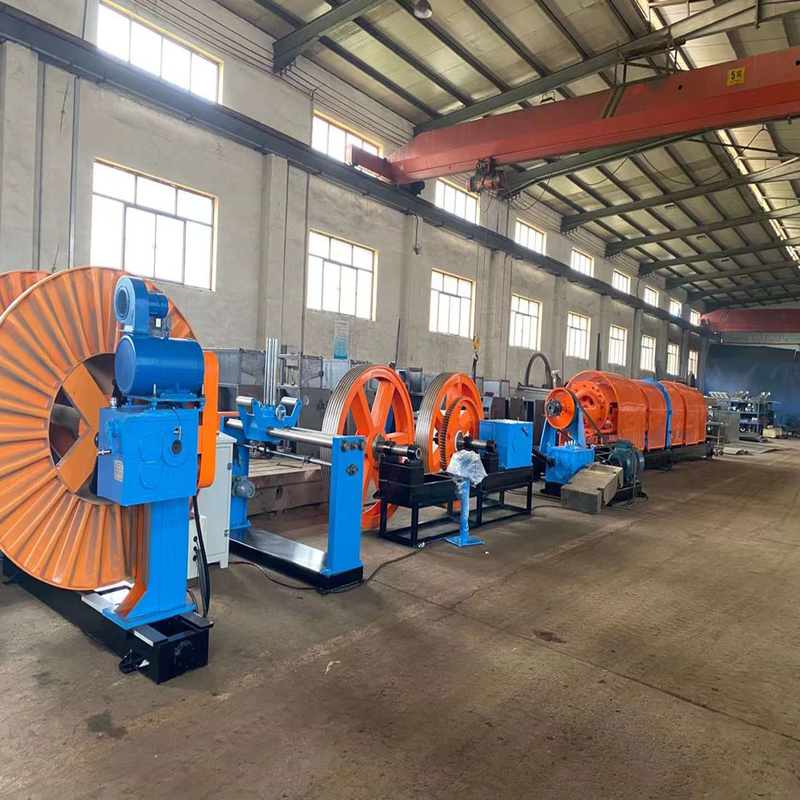

Greater Effectiveness JC-630/1+8 Tubular Stranding Machine In The Wire Rope Industry
1. Application:
2. Main Parameter:
| Max Single wire diameter | Ø 8.0mm |
| Max strand diameter | Ø 20mm |
| Through line hole diameter | Ø 20mm(internal polishing of alloy nozzle) |
| Center wire Max through wire hole diameter | Ø 16mm (internal polishing of alloy nozzle) |
| Strand pitch range |
The first gear: 35.33mm ～ 268.55mm The Second gear;30.28mm-230.19mm TheThird gear;48.05mm-365.23mm |
| Cage max rotation speed | 500r/min(50Hz) |
| capstan line speed range | 17.13～130.18m/min |
| capstan wheel diameter | Ø 1380+ Ø 1380mm |
| Bobbin size in cage | Ø 630 (implemented by the demander's standard) |
| Take-up bobbin size | Ø 760 ~ Ø 1400mm (implemented by the demander's standard) |
| Main motor power | 55KW(AC) |
3. Main Components:
| 630 pay-off frame | 1 set |
| 8 bobbins strand cage | 1 set |
| hydraulic parallel die holder | 1 set (manual hydraulic, numerical display pressure) |
| Straightener | 1 set |
| Ø 1380+ Ø 1380 double capstan device | 1 set (insert material: GCr15SiMn) |
| pneumatic stop-back device of capstan wheel | `1 set (Pressure three groove) |
| Ø 1400 top tip type take-up and traverse frame | 1 set |
| Electrical control system | 1 set |
| Safety protecting system | 1 set |
| Anchor bolt | 1 set |
4. Main Brand:
| Power supply | Three phase five wire system 380V (± 10%), 50Hz. |
| Total power | 5kVA |
| Big bearing of main cage | China "Wafangdian Guangyang" |
| Other bearings | China "Ha, WA, Lo"( HRB.WZS.LYC ) |
| brand of low voltage electrical appliances | China (CHNT) |
| Brand of main motor | China "Jinsheng, Qufu, Shandong" |
| brand of main motor driver | China “Inovance” |
| Brand of take-up main motor | China "Jinsheng, Qufu, Shandong" |
| Brand of controller of take-up motor | Inovance (variable frequency speed controller) |
| Brand of Traverse line motor | DELTA servo motor |
| Brand of controller of Traverse line mtor | DELTA servo drive controller |
5. Main electrical system feature:
