JC-400/1+6 Compact Tubular Stranding Machine Closer For Insulation Wire

Name: JC-400/1+6 Compact Tubular Stranding Machine Closer For Insulation Wire
Brand: Beyde Trading Co.,Ltd
SKU: 630/1+8
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 630/1+8

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                insulation wire tubular stranding machine, compact tubular stranding machine, compact tubular strander


Model:	JC-400/1+6	Product Name:	Tubular Stranding Machine
Stranding Direction:	Left Or Right Hand	Wire Type:	Aluminum Or Copper And Steel Wire
Capstan Diameter:	1000mm	Capstan Speed:	230m/min
Drum Diameter:	PND400	Stranding Pitch:	Stepless-adjust
Stranding Speed:	800r/min	Wire Diameter:	1 - 5.0mm
Max Stranding Dia,:	15mm	Wire Tension:	Mechanic Or Pneumatic
PLC:	Siemens

Model:	JC-400/1+6
Product Name:	Tubular Stranding Machine
Stranding Direction:	Left Or Right Hand
Wire Type:	Aluminum Or Copper And Steel Wire
Capstan Diameter:	1000mm
Capstan Speed:	230m/min
Drum Diameter:	PND400
Stranding Pitch:	Stepless-adjust
Stranding Speed:	800r/min
Wire Diameter:	1 - 5.0mm
Max Stranding Dia,:	15mm
Wire Tension:	Mechanic Or Pneumatic
PLC:	Siemens

Product Description

Greater Effectiveness JC-400/1+6 Tubular Closer Machine For Insulation Wire

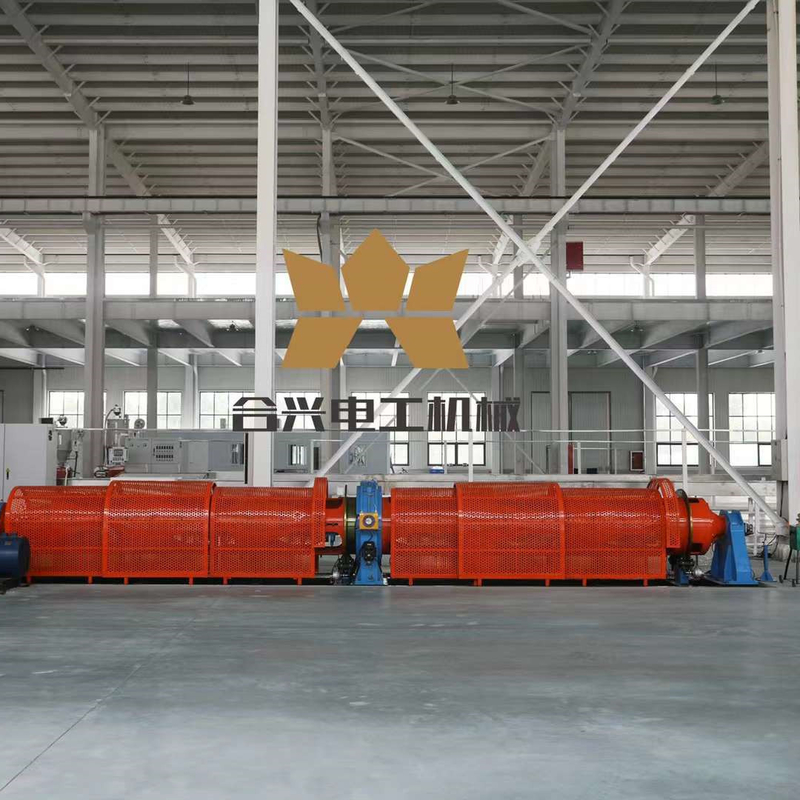

JC-400/1+6 Compact Tubular Stranding Machine Closer For Insulation Wire 0

1. Application:

This machine is mainly used for the stranding of 7-core steel wire. The appearance of the machine is designed by professionals, breaking the conventional production process, with atmospheric appearance, stable high-speed operation and low noise.
After many models and multiple production, combined with the actual test results of the client, based on the accumulation of many experiences, each part is optimized. The details are described as follows.

2. Main Parameter:

Max Single wire diameter	Ø1.0-5.0
Max strand diameter	Ø15mm
Through line hole diameter	Ø 20mm(internal polishing of alloy nozzle)
Center wire Max through wire hole diameter	Ø 16mm (internal polishing of alloy nozzle)
Strand pitch range	The first gear: 35.33mm ～ 268.55mm The Second gear;30.28mm-230.19mm TheThird gear;48.05mm-365.23mm
Cage max rotation speed	500r/min(50Hz)
capstan line speed range	17.13～130.18m/min
capstan wheel diameter	Ø 1000+ Ø 1000mm
Bobbin size in cage	Ø 400 (implemented by the demander's standard)
Take-up bobbin size	Ø 630 ~ Ø 1400mm (implemented by the demander's standard)
Main motor power	55KW(AC)

3. Main Components:

630 pay-off frame	1 set
6 bobbins strand cage	1 set
hydraulic parallel die holder	1 set (manual hydraulic, numerical display pressure)
Straightener	1 set
Ø 1000+ Ø 1000 double capstan device	1 set (insert material: GCr15SiMn)
pneumatic stop-back device of capstan wheel	`1 set (Pressure three groove)
Ø 1400 top tip type take-up and traverse frame	1 set
Electrical control system	1 set
Safety protecting system	1 set
Anchor bolt	1 set

4. Main Brand:

Power supply	Three phase five wire system 380V (± 10%), 50Hz.
Total power	5kVA
Big bearing of main cage	China "Wafangdian Guangyang"
Other bearings	China "Ha, WA, Lo"( HRB.WZS.LYC )
brand of low voltage electrical appliances	China (CHNT)
Brand of main motor	China "Jinsheng, Qufu, Shandong"
brand of main motor driver	China “Inovance”
Brand of take-up main motor	China "Jinsheng, Qufu, Shandong"
Brand of controller of take-up motor	Inovance (variable frequency speed controller)
Brand of Traverse line motor	DELTA servo motor
Brand of controller of Traverse line mtor	DELTA servo drive controller

5. Main electrical system feature:

the electric power cabinet and control cabinet are separately set and installed.
install the jog switch for the convenience of equipment operation.
the operation panel is set with "efficiency meter", i.e. equipment operation time.
one key start of equipment, that is, the host and traction are synchronized, and the receiving line is delayed compared with the start and stop of the host; the receiving line starts first than the host, and stops after the host, and the start and stop delay time can be adjusted.
after the power supply of the equipment is turned on, the lubrication system will enter the working state, reducing the probability of human operation error.
the coil voltage in the control circuit is AC220V.
all wires shall be protected from breaking wires, and tension regulators shall be provided with safety protection to avoid damage of broken wires.
