Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative

Name: Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative
Brand: Beyde Trading Co.,Ltd
SKU: 400/1+6
Availability: InStock

Product Details

Place of Origin: Hebei, China

Brand Name: Beyde

Model Number: 400/1+6

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Sea freight safety packing

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Advanced tubular strander, Innovative tubular strander, Advanced tubular strander machine


Usage:	Stranding	Color:	According To Customer Requirement
Name:	Tubular Stranding Machine	Application:	Steel,aluminium,ACSR And AAAC
Wire Material:	Copper	Smallest Take-up Bobbin:	PN800
Machine Central Height:	1000mm	Central Pay-off Bobbin:	PN400-PN630
Take-up Bobbin Size:	PND800-PND1600	Material:	Iron And Steel
Plc:	Siemens	Input Wire:	1.0-5.0mm
Warranty:	12 Months

Usage:	Stranding
Color:	According To Customer Requirement
Name:	Tubular Stranding Machine
Application:	Steel,aluminium,ACSR And AAAC
Wire Material:	Copper
Smallest Take-up Bobbin:	PN800
Machine Central Height:	1000mm
Central Pay-off Bobbin:	PN400-PN630
Take-up Bobbin Size:	PND800-PND1600
Material:	Iron And Steel
Plc:	Siemens
Input Wire:	1.0-5.0mm
Warranty:	12 Months

Product Description

Latest JJG-400/1+6 Tubular Strander and Stranding Machine Quality Line

Application: This machine is mainly used for the stranding of 7-Steel core aluminum stranded wire, aluminum and copper. also be used for stranding steel wire rope and insulated wire.

Reel Size (mm)	Max. Rotation Speed (rpm)					Max.Rotation Speed Of Cage (with Stranding Bow)		Single Wire Diameter (mm)
Reel Size (mm)	6B	12B	18B	24B	36B	Bow Cradle	Max. Rotation Speed	Aluminum	Copper
φ200	1500	1400	1300	1100	900			φ0.8~φ1.5	φ0.6~φ1.5
φ315	1400	1300	1200	1000	800			φ1.2~φ2.0	φ1.0~φ2.0
φ400	1300	1200	1100	900	800	φ800	500	φ1.5~φ3.0	φ1.2~φ3.0
φ500	1100	1000	850	750	700	φ1000	400	φ1.5~φ4.0	φ1.5~φ4.0
φ560	900	800	700	650	600	φ1250	350	φ1.5~φ5.0	φ1.5~φ5.0
φ630	900	800	700	650	600	φ1250	350	φ1.5~φ5.0	φ1.5~φ5.0
φ710	600	500	450	400	350	φ1600	300	φ1.5~φ6.6	φ1.5~φ6.6
φ760	500	450	400	350	300	φ1600	300	φ2.0~φ7.0	φ2.0~φ7.0
φ800	450	400	350	300	220	φ1600	300	φ2.0~φ7.0	φ2.0~φ7.0

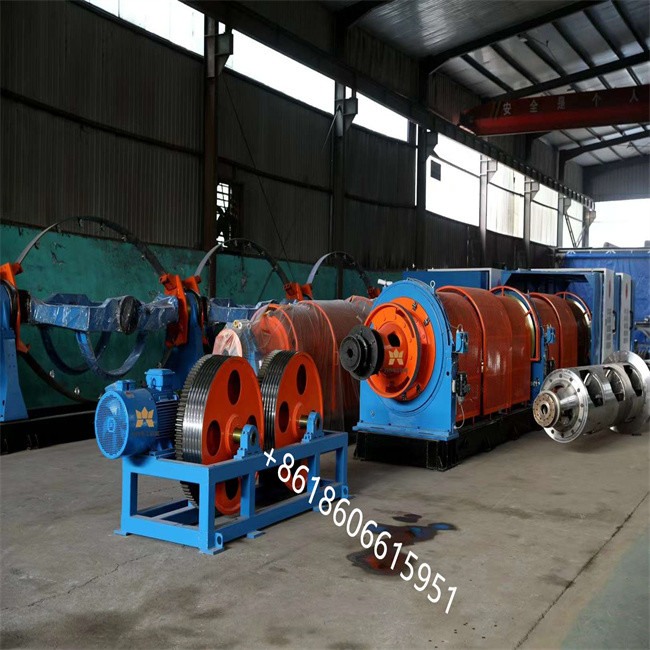

Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative 0

Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative 1

Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative 2

Input wire diameter	Ø 1.0－5.0mm
Max stranding OD	Ø15mm
Max rotation speed	600r/min
Strand pitch	42-320mm
Traction line speed	25-191m/min
Main motor power	18.5KW(AC)
Pay-off bobbin size in cage	PN400
Capstan wheel size	Ø 800+ Ø 1000mm
Central pay-off size	PN400
Take-up bobbin size	PN800-PN1600
Machine center high	1000mm

Q: Why do I choose your company?

A: We have more than 40 years of professional experience in the production of cable machinery, providing high-quality,

high-security products.

We have an experienced team of skilled workers and engineers.

We can support overseas training engineers.

We can customize the design, to accept the customer's sample design.

We can provide customers with after-sales service.

Enable to give you a quotation for the cable stander, there is some necessary information that we need to know:

1. Cable size structure, Cable diameter?

2. How many kgs/meters to strand per hour?

3. Reel/Flange Diameter, we need to quote correct take-up and pay off machine

4. Bobbin drawing
