Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 630/1+6
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Safety packing for Container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: |
Stranding,aluminum Alloy Conductor.,twist Copper Conductor |
Color: |
Customized |
Name: |
Tubular Stranding Machine |
Application: |
Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire |
Smallest Take-up Bobbin: |
PN800 |
Machine Central Height: |
700mm |
Central Pay-off Bobbin: |
PN400-PN630 |
Power: |
37kw |
Take-up Bobbin Size: |
PND800-PND1600 |
PLC: |
Siemens |
Maximum Bare Wire Diameter: |
5mm |
Warranty: |
12 Months |
Usage: |
Stranding,aluminum Alloy Conductor.,twist Copper Conductor |
Color: |
Customized |
Name: |
Tubular Stranding Machine |
Application: |
Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire |
Smallest Take-up Bobbin: |
PN800 |
Machine Central Height: |
700mm |
Central Pay-off Bobbin: |
PN400-PN630 |
Power: |
37kw |
Take-up Bobbin Size: |
PND800-PND1600 |
PLC: |
Siemens |
Maximum Bare Wire Diameter: |
5mm |
Warranty: |
12 Months |

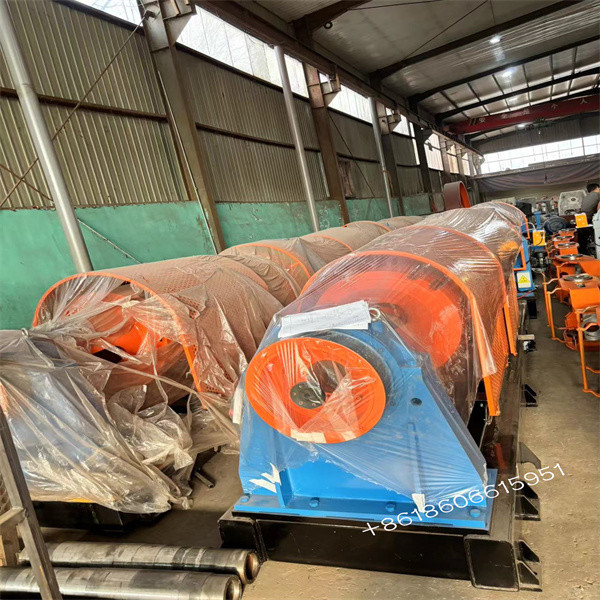

630/1+6 Power Wire Stranding Machine Steel Wires Rope Tubular Stranding Machine
1. Use
This machine is mainly used for the stranding of 7-core copper, aluminum and steel core aluminum strand wire. The appearance of the unit has been planned and designed by professionals, and the appearance is atmospheric and the high-speed operation is stable.
The actual production pitch can be obtained by independent motor drive. At the same time, this driving form can greatly reduce the mechanical transmission structure, thus reducing the maintenance link, effectively reducing the equipment running noise and the later maintenance link.
| Single wire diameter |
Ø 1.5mm- Ø 5.0mm for Cu Ф1.6mm- Ø 5.0mm for Al Ø 1.0mm- Ø 3.5mm for St |
| Through line hole diameter | Ø 15mm |
| Strand pitch range | 40 -300mm (stepless adjustable on PLC) |
| Cage max rotation speed | 500r/min |
| capstan line speed range | 22.5-103.5m/min |
| capstan wheel diameter | Ø 1200+ Ø 1200mm |
| Pay-off bobbin size in cage | PND630 |
| Take-up bobbin size | PN800-PN1600 |
| Center Pay-off bobbin size | PND630 |
| Main motor power | 45KW |
| Capstan motor power | 37KW |
| Take-up motor power | 4.0KW |
Q1.Are you the manufacturer or trading company?
-A:We are the manufacturer.Our company has a technical administration team who engages wire and cable equipment industrial more than ten years.
Q2.What is your company's main production?
-A:Our main production cable laying up machine, stranding machine,cable extrusion machine.
Q3.how can i get quotation and make order?
-A:Send us your requests,we will quote exactly cost.
Q4.How long will the delivery time take?
-A:About 80 days
Q5.How is the after-sales service of your company?
-A:We have a strong after-sales service team to provide super after-sales service, We can send out ourengineers without 2 days to solve customer's problem.
Q6.What is your machine quality?
-A:We have a strong quality inspection team.Before shipping out machine,we will check and ensure the good quality
