Home > products > Tubular Stranding Machine > Good After Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine

Good After Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 630/1+6

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety packing for Container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price
Product Details
Highlight:

400x6B Tubular Stranding Machine

,

Steel Wire Rope Tubular Stranding Machine

,

400x6B Stranding Machine

Usage:
Stranding,aluminum Alloy Conductor.,twist Copper Conductor
Color:
Customized
Name:
Tubular Stranding Machine
Application:
Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Smallest Take-up Bobbin:
PN800
Machine Central Height:
700mm
Central Pay-off Bobbin:
PN400-PN630
Power:
37kw
Take-up Bobbin Size:
PND800-PND1600
PLC:
Siemens
Maximum Bare Wire Diameter:
5mm
Warranty:
12 Months
Usage:
Stranding,aluminum Alloy Conductor.,twist Copper Conductor
Color:
Customized
Name:
Tubular Stranding Machine
Application:
Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Smallest Take-up Bobbin:
PN800
Machine Central Height:
700mm
Central Pay-off Bobbin:
PN400-PN630
Power:
37kw
Take-up Bobbin Size:
PND800-PND1600
PLC:
Siemens
Maximum Bare Wire Diameter:
5mm
Warranty:
12 Months
Product Description

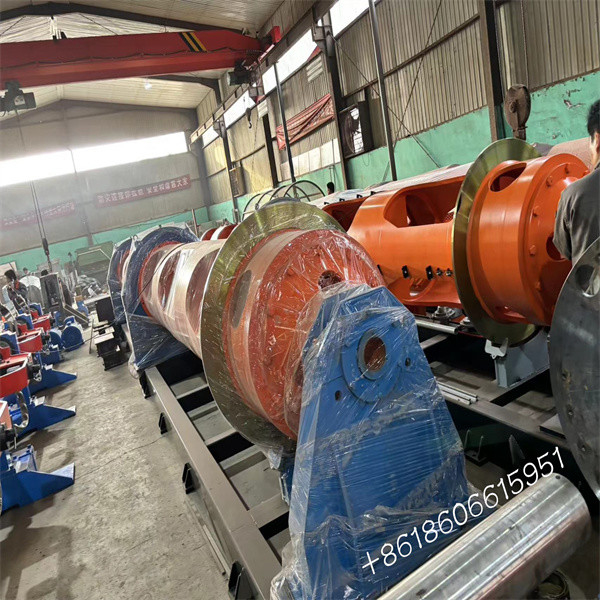

Good After-Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine



1. Use
This machine is mainly used for the stranding of 7-core copper, aluminum and steel core aluminum strand wire. The appearance of the unit has been planned and designed by professionals, and the appearance is atmospheric and the high-speed operation is stable.
The actual production pitch can be obtained by independent motor drive. At the same time, this driving form can greatly reduce the mechanical transmission structure, thus reducing the maintenance link, effectively reducing the equipment running noise and the later maintenance link.



Single wire diameter

Ø 1.5mm- Ø 5.0mm for Cu

Ф1.6mm- Ø 5.0mm for Al

Ø 1.0mm- Ø 3.5mm for St

Through line hole diameter Ø 15mm
Strand pitch range 40 -300mm (stepless adjustable on PLC)
Cage max rotation speed7 00r/min
capstan line speed range 22.5-103.5m/min
capstan wheel diameter Ø 1000+ Ø 1000mm
Pay-off bobbin size in cage PND400
Take-up bobbin size PN800-PN1600
Center Pay-off bobbin size PND400
Main motor power 30KW
Capstan motor power 18KW
Take-up motor power 4.0KW

Good After Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine 0

Good After Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine 1

Good After Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine 2Good After Sale Service 400x6B Steel Wire Rope Tubular Stranding Machine 3



Q1.Are you the manufacturer or trading company?
-A:We are the manufacturer.Our company has a technical administration team who engages wire and cable equipment industrial more than ten years.

Q2.What is your company's main production?
-A:Our main production cable laying up machine, stranding machine,cable extrusion machine.

Q3.how can i get quotation and make order?
-A:Send us your requests,we will quote exactly cost.

Q4.How long will the delivery time take?
-A:About 80 days

Q5.How is the after-sales service of your company?
-A:We have a strong after-sales service team to provide super after-sales service, We can send out ourengineers without 2 days to solve customer's problem.

Q6.What is your machine quality?
-A:We have a strong quality inspection team.Before shipping out machine,we will check and ensure the good quality.



Our Services

• Your inquiry related to our product & price will be replied within 24hours.


• Well-trained & experienced staff are to answer all your inquiries

• OEM & ODM projects are both available.

• Your business relationship with us will be confidential to any third party.

• Good after-sale service offered, please get back to us if you got any questions.

Our four promises

We can do the designs according to the customers' requirements.

We can offer you the high quality & reasonable price.


We can offer you a good after-sell service.

Prompt delivery.



If you request quotation by CIF ,please let ue know the port of destination so as to check the freight with our forwarder.


Q: Where is you factory location? How could I visit there?

A: -We are in Heibei province , China.

If you want to visit us,We could pick you up from Wuxi Airport. or you can take high speed trian ,we will pick up



you from Beijing.
