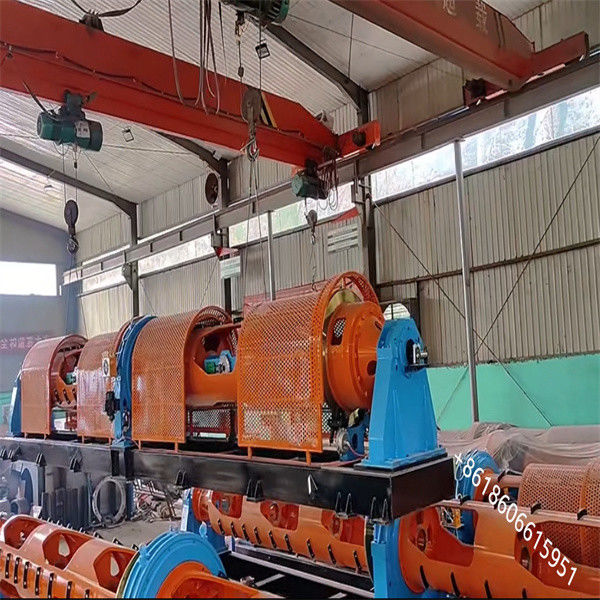

New Model 500 High Speed Tubular Stranding Machine-JGG-500-1+6

Product Details

Place of Origin: China

Brand Name: Beyde

Model Number: 500/1+6

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Safety packing for Container

Delivery Time: 90 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200 set/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                New Model Tubular Stranding Machine, JGG-500-1+6 Tubular Stranding Machine, 500 Tubular Stranding Machine


Usage:	Stranding,aluminum Alloy Conductor.,twist Copper Conductor	Color:	Customized
Name:	Tubular Stranding Machine	Application:	Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Smallest Take-up Bobbin:	PN800	Machine Central Height:	700mm
Central Pay-off Bobbin:	PN400-PN630	Power:	30kw
Take-up Bobbin Size:	PND800-PND1600	PLC:	Siemens
Input Wire:	0.8-5mm	Warranty:	12 Months
Max Stranding:	15mm

Usage:	Stranding,aluminum Alloy Conductor.,twist Copper Conductor
Color:	Customized
Name:	Tubular Stranding Machine
Application:	Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Smallest Take-up Bobbin:	PN800
Machine Central Height:	700mm
Central Pay-off Bobbin:	PN400-PN630
Power:	30kw
Take-up Bobbin Size:	PND800-PND1600
PLC:	Siemens
Input Wire:	0.8-5mm
Warranty:	12 Months
Max Stranding:	15mm

Product Description

New Model 500 High Speed Tubular Stranding machine-JGG-500-1+6

What do you need a tubular stranding machine for?

In tubular stranding, single cores are twisted into a bundle of wires. With this, additional cores or conductor bunches are wound in several layers around a core material that is routed through the machine axis. The structure is based on the specification required for the respective cable type or application.

Tubular Type Stranding Machine is suitable for high-speed stranded 7/12/19 round, compressed copper and aluminum conductor or steel wire with 100% back twist movement.

Rotating axis tube is supported by big bearings, it is suitable for high speed rotation.

The wire tension control is done through band type brakes.

Driven by independently motor.

The machine with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.

The electromagnetic tension is used for setting out, with the tension of 10kg. The machine is stopped in the cradle for adjustment and installed on the manual operation surface, which is convenient for micro adjustment and is not easy to fail.

loading method: end shaft structure, mechanical locking, safe and stable, not easy to be thrown out, convenient loading and unloading line plate, line plate is installed into cradle with the help of crown block in workshop.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed	500 rpm	500 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm

New Model 500 High Speed Tubular Stranding Machine-JGG-500-1+6 0

Component:

Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.

Main Character:

1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.

2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.

3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.

4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.
