PC Steel Stranding Machine 630/1+6 High-Strength Carbon Steel

PC Steel Stranding Machine 630/1+6 High-Strength Carbon Steel

High-speed tubular strander for the production of 1×7 prestressed concrete steel strand (PC strand) and 1+6 galvanised / stainless steel wire ropes. Six wires pay off from inside the rotating tube, twist around a central wire without torsion, and exit as a geometrically stable, stress-relieved strand — at up to 1200 rpm cage speed.

Product Overview

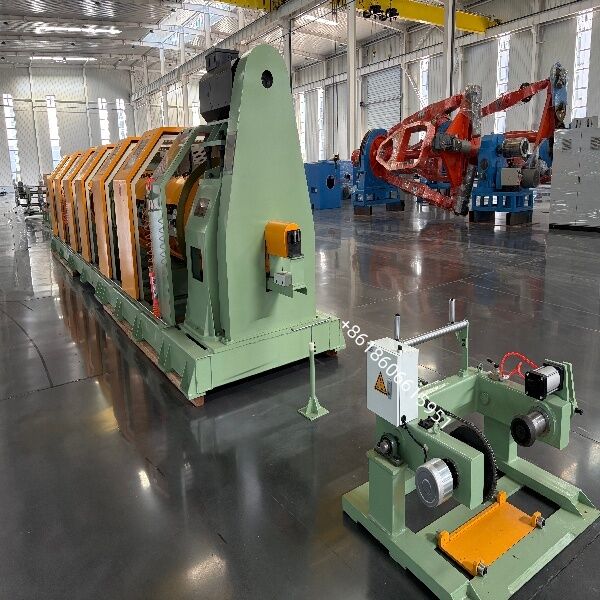

Tubular strander · Model TG-630/1+6 · For 1×7 prestressed concrete steel strand and 1+6 wire rope

The Tubular Stranding Machine 630/1+6 is a high-speed, torsion-free stranding system designed for manufacturers of prestressed concrete (PC) steel strand per ASTM A416 / A779, EN 10138, GB/T 5224 and ISO 6934-3. It lays six outer wires (wound on 630 mm bobbins carried inside the rotating tube) around a stationary central wire, producing the standard 1×7 strand structure used in post-tensioned and pre-tensioned concrete construction.

Because the pay-off reels rotate with the tube rather than counter-rotating, the machine imparts zero reverse twist to the individual wires. The result is a strand with uniform lay pitch, consistent diameter, low relaxation and excellent bond performance with concrete — the three properties that determine whether a strand passes tensile and stress-relaxation testing.

Quality Assurance & After-Sales
Factory Acceptance Test (FAT)
No-load run ≥ 2 h at 1200 rpm, vibration ≤ 2.8 mm/s
Lay pitch accuracy ≤ ±1% over 100 m
Tension stability ≤ ±5% over 8 h
Strand diameter within ±0.15 mm, no ovality > 3%
Safety circuit test per ISO 13849-1, Cat. 3
Documentation & support
GA drawing, P&ID, electrical schematic, terminal list
Operation & maintenance manual (EN / CN / RU / ES)
Parts list with OEM codes, tooling list, CE declaration
On-site installation, commissioning and operator training
12 months warranty, 72 h spare-part dispatch from stock
Remote diagnostics via VPN / TeamViewer

Operation direction:

The right hand machine, that is, facing the device operation, the left pay-off, and the right take-up

Color:

Equipment main body: RAL 6021 Pale Green (wrinkle finish)
Rotating parts: RAL 1037 Sun Yellow
Guard main body: RAL 6021 Pale Green (wrinkle finish)
Sliding door panels: RAL 1037 Sun Yellow
Guard interior: RAL 1013 Oyster White
Control housing: RAL 7032 Pebble Grey
