High-speed tubular strander for the production of 1×7 prestressed concrete steel strand (PC strand) and 1+6 galvanised / stainless steel wire ropes. Six wires pay off from inside the rotating tube, twist around a central wire without torsion, and exit as a geometrically stable, stress-relieved strand — at up to 1200 rpm cage speed.

Product Overview

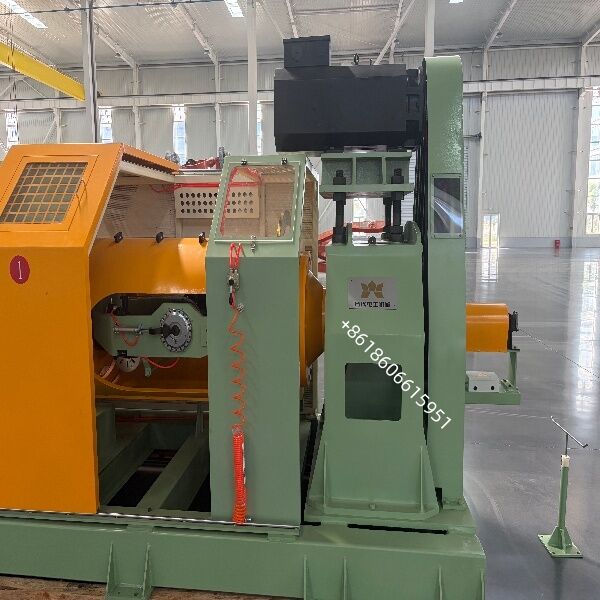

Tubular strander · Model TG-630/1+6 · For 1×7 prestressed concrete steel strand and 1+6 wire rope

The Tubular Stranding Machine 630/1+6 is a high-speed, torsion-free stranding system designed for manufacturers of prestressed concrete (PC) steel strand per ASTM A416 / A779, EN 10138, GB/T 5224 and ISO 6934-3. It lays six outer wires (wound on 630 mm bobbins carried inside the rotating tube) around a stationary central wire, producing the standard 1×7 strand structure used in post-tensioned and pre-tensioned concrete construction.

Because the pay-off reels rotate with the tube rather than counter-rotating, the machine imparts zero reverse twist to the individual wires. The result is a strand with uniform lay pitch, consistent diameter, low relaxation and excellent bond performance with concrete — the three properties that determine whether a strand passes tensile and stress-relaxation testing.

True Tubular, Torsion-Free Kinematics
Six 630 mm bobbins housed inside a dynamically balanced steel tube. Wires pay off without reversing, so no residual twist, no "spring" in the finished strand, no wire damage.

Hardened & Ground Gearing
Change-gear set for lay pitch selection, plus stepless variant on request. Pitch accuracy ≤ ±1%, repeatable reel-to-reel and batch-to-batch.

Individual Wire Tensioning
Magnetic-powder or servo-controlled pay-off tension, 5–60 N per wire, drift ≤ ±5% over 8 h. Eliminates loose outer wires and diameter fluctuation.

Full-Length Safety Tube
Rotating tube enclosed by a stationary steel guard with interlocking access doors, zero-speed door release and dual-channel emergency stop (ISO 13849-1, Cat. 3).

High-Speed Capability
Cage speed up to 1200 rpm (product and balance-dependent). Double-bearing support, ISO 21940 G6.3 dynamic balancing, vibration ≤ 2.8 mm/s at full speed.

PLC + HMI Control
Real-time rpm, lay pitch, line speed, metre count, tension and alarm display. 50 product recipes, Ethernet/Modbus TCP, OPC-UA optional for MES linkage.

Quality Assurance & After-Sales
Factory Acceptance Test (FAT)
No-load run ≥ 2 h at 1200 rpm, vibration ≤ 2.8 mm/s
Lay pitch accuracy ≤ ±1% over 100 m
Tension stability ≤ ±5% over 8 h
Strand diameter within ±0.15 mm, no ovality > 3%
Safety circuit test per ISO 13849-1, Cat. 3
Documentation & support
GA drawing, P&ID, electrical schematic, terminal list
Operation & maintenance manual (EN / CN / RU / ES)
Parts list with OEM codes, tooling list, CE declaration
On-site installation, commissioning and operator training
12 months warranty, 72 h spare-part dispatch from stock
Remote diagnostics via VPN / TeamViewer

Operation direction:

The right hand machine, that is, facing the device operation, the left pay-off, and the right take-up

Color:

Equipment main body: RAL 6021 Pale Green (wrinkle finish)
Rotating parts: RAL 1037 Sun Yellow
Guard main body: RAL 6021 Pale Green (wrinkle finish)
Sliding door panels: RAL 1037 Sun Yellow
Guard interior: RAL 1013 Oyster White
Control housing: RAL 7032 Pebble Grey
